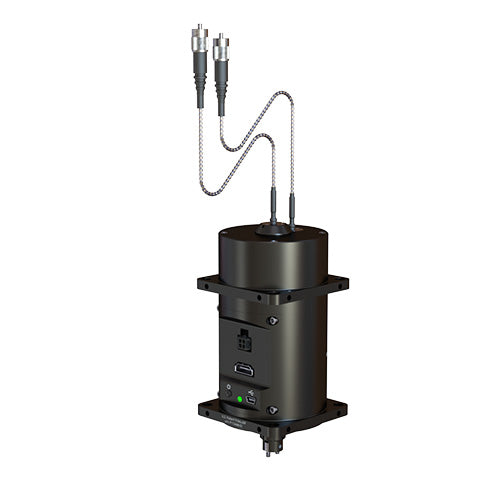

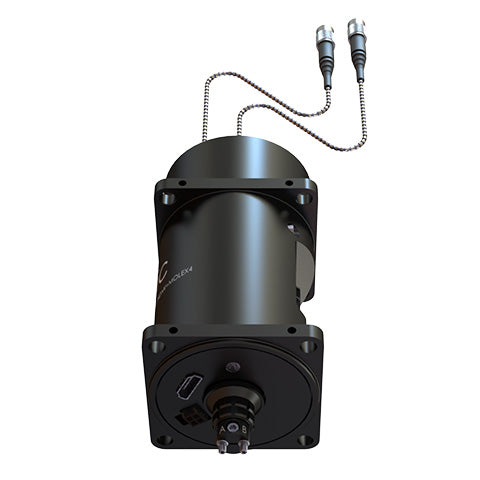

Assisted 2x2 Pigtailed Fiber-optic & Electric Rotary Joint - 24 contacts
Assisted 2x2 Pigtailed Fiber-optic & Electric Rotary Joint - 24 contacts
The Pigtailed 2x2 Assisted Fiber-optic & Electric Rotary Joint allows frictionless rotation of 2 independent optical channels and 24 electrical contacts thanks to motorized assistance.
The rotary joint detects torsion in fiber-optic patch cords connecting it to a moving animal, turning the rotor and allowing the animal to move freely without discomfort.
When a high-stability output is required, the Pigtailed 2x2 Assisted Fiber-optic & Electric Rotary Joint is recommended. These rotary joint have pigtailed, 1 m long FC-connectorized patch cords connected to the optical inputs while the optical output uses two M3 receptacle. The pigtailed patch cords use a 200 or 400 μm core, 0.37 NA or 0.57 NA optical fibers. An ARMO jacket is used to protect the patch cords for maximum reliability.
…generating
The Pigtailed 2x2 Assisted Fiber-optic & Electric Rotary Joint allows frictionless rotation of 2 independent optical channels and 24 electrical contacts thanks to motorized assistance.
The rotary joint detects torsion in fiber-optic patch cords connecting it to a moving animal, turning the rotor and allowing the animal to move freely without discomfort.
When a high-stability output is required, the Pigtailed 2x2 Assisted Fiber-optic & Electric Rotary Joint is recommended. These rotary joint have pigtailed, 1 m long FC-connectorized patch cords connected to the optical inputs while the optical output uses two M3 receptacle. The pigtailed patch cords use a 200 or 400 μm core, 0.37 NA or 0.57 NA optical fibers. An ARMO jacket is used to protect the patch cords for maximum reliability.
| Electrical Connector | HDMI+4(Molex Micro-fit 3.0 Dual Row 4 Contacts Connector) 2x PZN-12(Omnetics Polarized Nano 12 Contacts) 2x HARWIN (Datamate L-Tek 12 pos 2 row) 1x SMA + 1x USB2-B micro + 1x PZN12 (Omnetics Polarized Nano 12 Contacts) |
| Optical Fiber | see options |
| Input Fiber (stator) | 2x 1 meter long, ARMO Black jacket, FC/PC |
| Output Connectors (rotor) | 2x M3 receptacles |
| Transmission | > 50 % (60% typical) |
| Maximum variation | < 1.5 % peak-to-peak |
| Design Wavelength | 530 nm |
| Electrical Connectors | see options |
| Number of contacts | 24 |
| Simple Resistance | < 0.5 Ω |
| Rotation Speed | up to 40 rpm |
| Maximum Current | 2 A per contact |
| Start up Torque | < 200 µN·m |
| Rotation Speed | up to 40 rpm |
| Power Supply | 10W mini USB (included) |
Tests that have been performed showed the compatibility of the following third party systems with the Assisted Electrical Rotary Joints – 24 channels:
| Compatibility of the rotary joint with other devices | |||
| Company | Product | Connectors | Adaptor (if necessary) |
| Blackrock Microsystem | CerePlex M | HDMI+4 | - |
| CerePlex µ | HDMI+4 | - | |
| Intan Technologies | RHD 16/32/64/128ch | 2xPZN12 | - |
| 2xHARWIN | Harwin 12 to Omnetics 12 Adapter | ||
| SMA + USB2-B micro + PZN12 | - | ||
| Neuropixels | Neuropixels 1.0 | HDMI+4 | Neuropixel Adapter (HDMI) |
| 2xPZN12 | Neuropixel Adapter (PZN12) | ||
| SMA + USB2-B micro + PZN12 | Neuropixel Adapter (USB2-B micro or PZN12) | ||
|
Neuropixels 2.0 |
HDMI+4 | Neuropixel Adapter (HDMI) | |
| 2xPZN12 | Neuropixel Adapter (PZN12) | ||
| SMA + USB2-B micro + PZN12 | Neuropixel Adapter (USB2-B micro or PZN12) | ||
| Pinnacle Technology Inc | EEG/EMG 3CH | HDMI+4 | Adapter HDMI PINNACLE 3 channels |
| EEG/EMG 4CH | HDMI+4 | Adapter HDMI PINNACLE 4 channels | |
| UCLA Miniscope | Miniscope V.4 | HDMI+4 | UCLA Miniscope Adapter |
| 2xPZN12 | UCLA Miniscope Adapter | ||
| SMA + USB2-B micro + PZN12 | UCLA Miniscope Adapter (SMA or PZN12) | ||
| White Matter LLC | eCube | HDMI+4 | Provided by White Matter LLC |
