Wireless Fiber Photometry Base Station

  • Unit price per


Ordering Code:

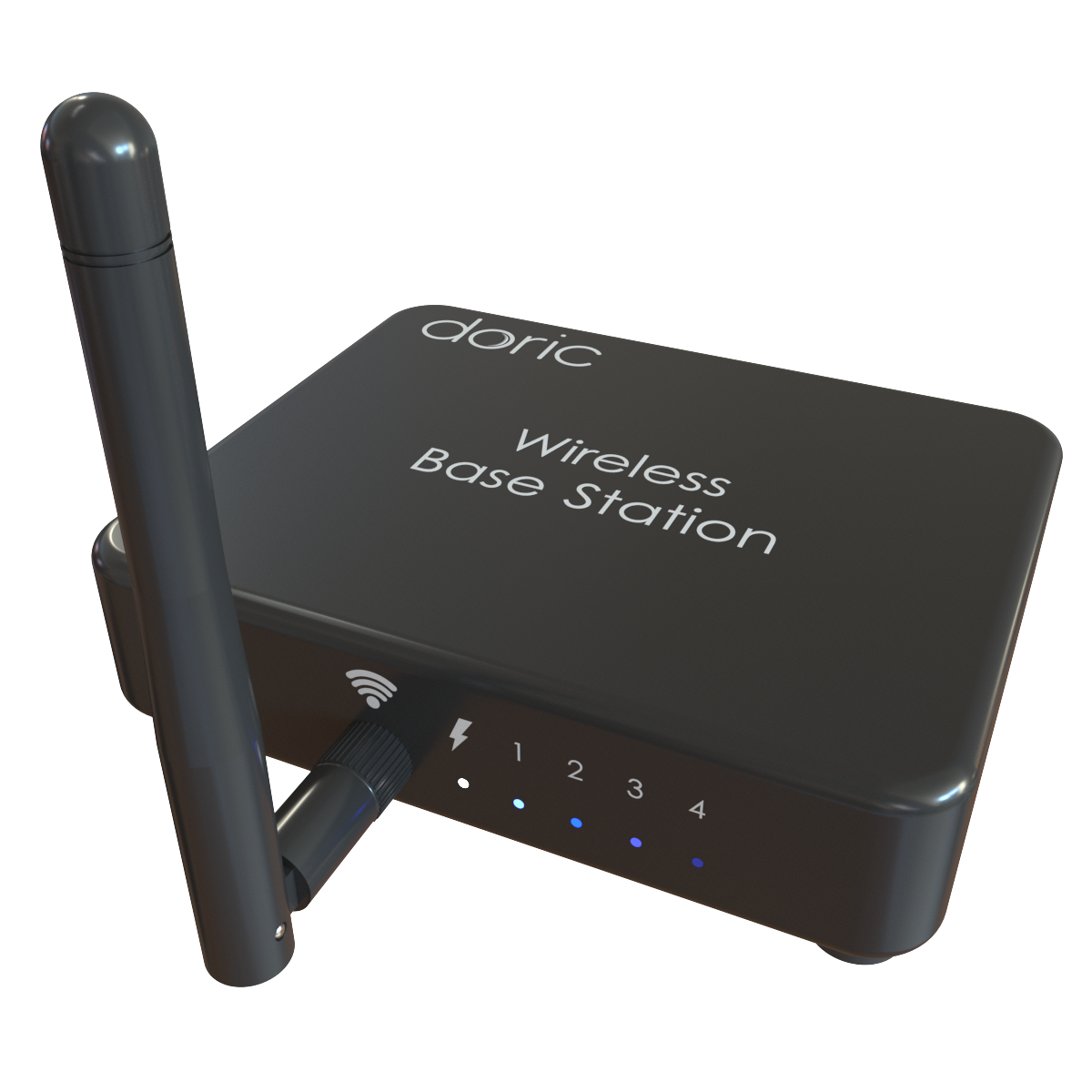

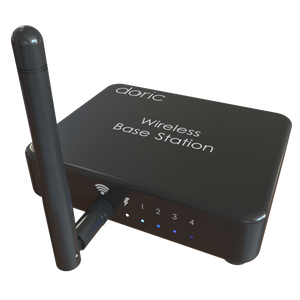

  • The Wireless Fiber Photometry Base Station manages the communication between the recording console (NC500) and up to 4 headstages. It is connected to the NC500 through one of the two EPHYS ports by an HDMI cable. The orientation of the base station's antenna is adjustable for optimal signal collection, at up to 2 meters in range.

  •    Transmission Range up to 2 m
       Number of Headstage  up to 4
       Wireless Frequency Band 2.4 - 2.5 GHz
       Base Station Interface HDMI (to NC500)
       Charger Interface
    USB-C
       Charger Power Supply
    AC/DC adapter 5 Watt (5 V, 1 A)
    with 1 meter cable USB-C to USB-A
       Charger Headstage Capacity
    4
       Dimensions
    106 x 87 x 28.5 mm (without antenna)
       Mass
    150 grams (with antenna)

  • Drawings

    Wireless Fiber Photometry Basestation Drawing

    User ManualEn

    Wireless Fiber Photometry User Manual
