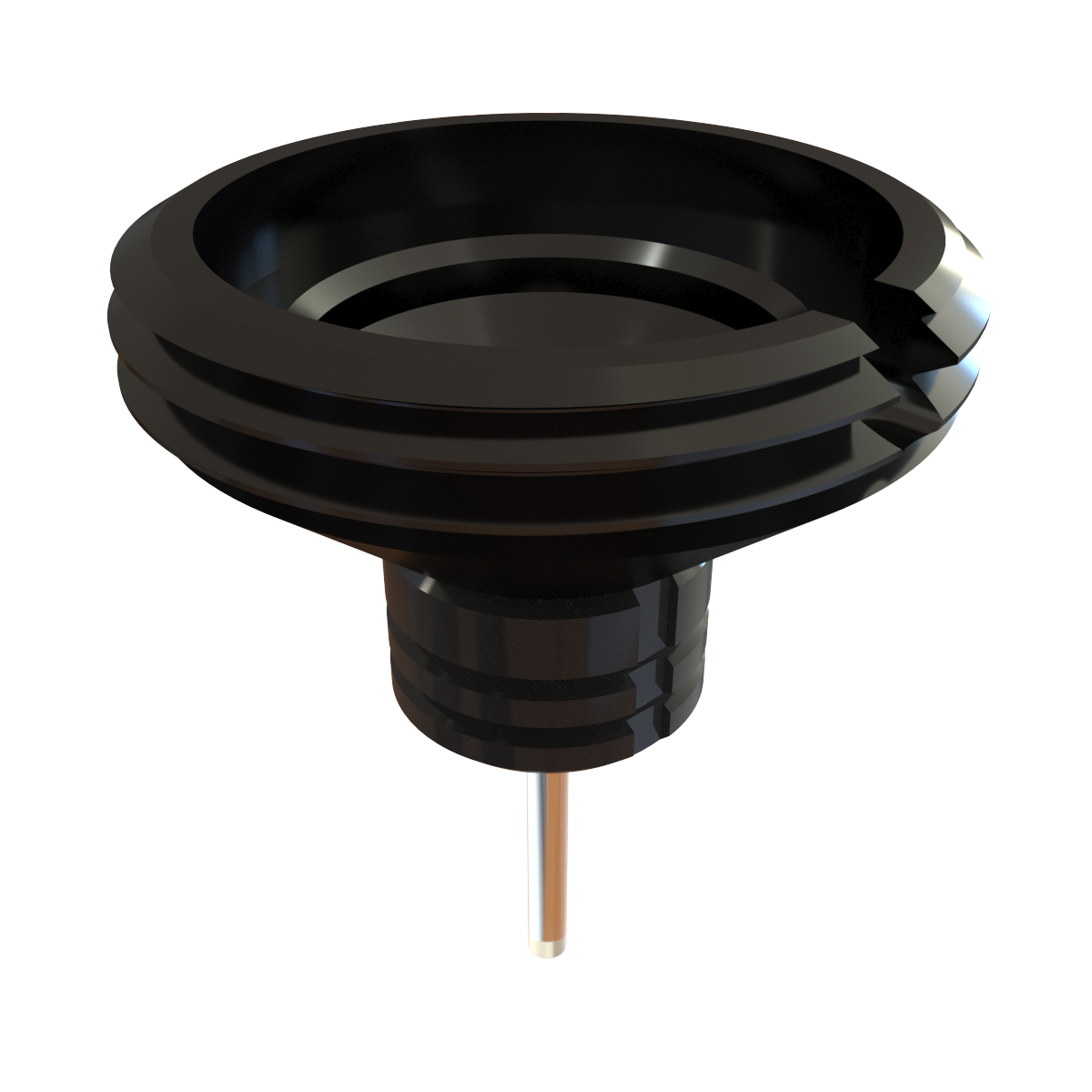

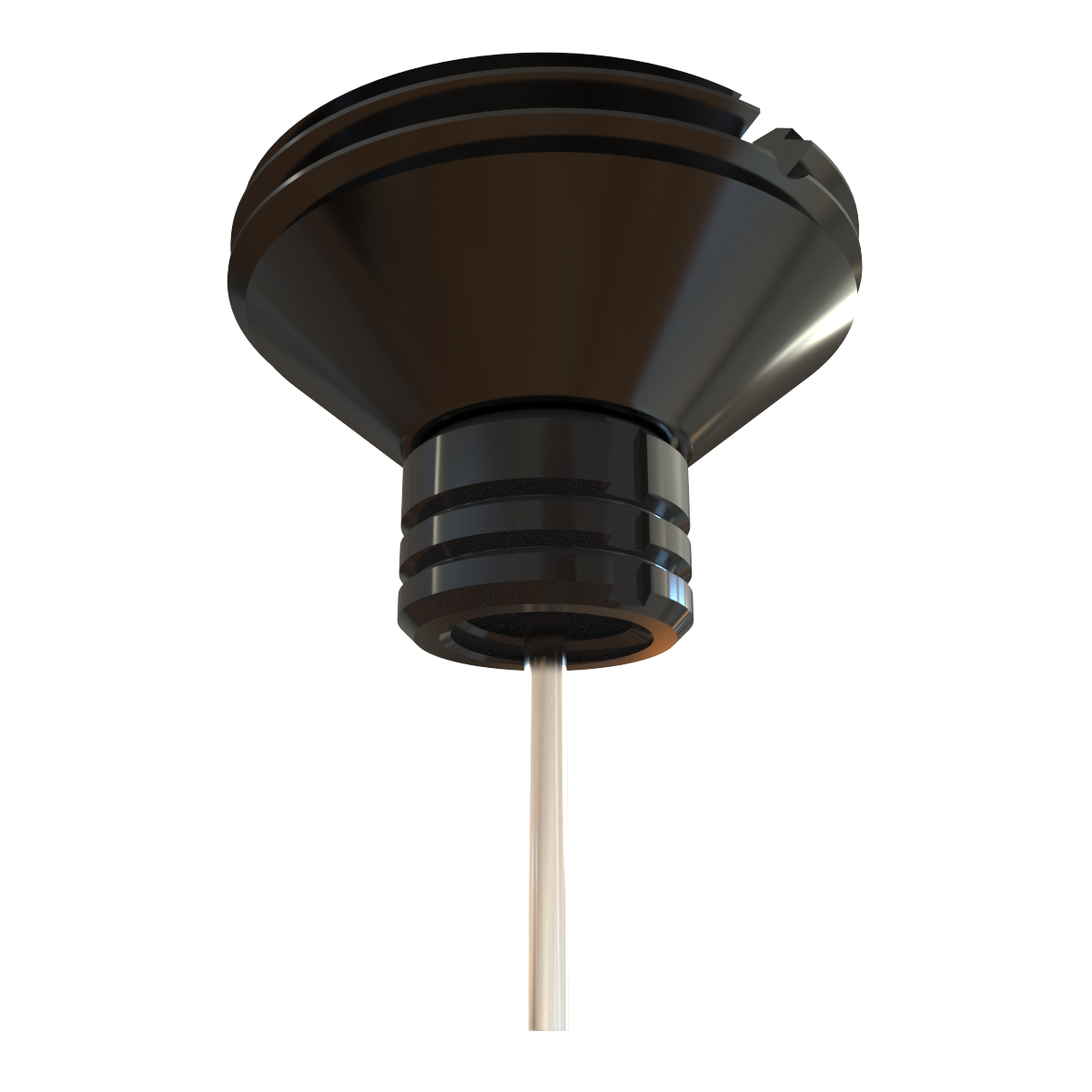

Twist-on Reduced Footprint Imaging Cannula

Twist-on Reduced Footprint Imaging Cannula
Twist-on Reduced Footprint Imaging Cannula


Ordering Code:



  • The Twist-on Reduced Footprint Imaging Cannula has been designed with an outer diameter of the base as small as 3.5 mm to image exiguous area of the brain (e.g. olfactory bulb). In the Twist-on Reduced Footprint Imaging Cannula, the GRIN lens protrusion length is user defined with steps of 250 microns. There is no protrusion adjustment ring. Twist-on Reduced Footprint Imaging Cannula are compatible with the efocus Fluorescence Microscope Body (eTFMB, eTOSFM)

    Notes: The protrusion length of the GRIN lens is determined from the base of the imaging cannula to its tip.

     Cannula Type GRIN lens fiber length
    (0.25 mm increments)

    D

    V

    E

    D (diameter 1 mm)

    0.00 - 3.0 mm

    2.43 - 5.43 mm

    4.85 - 7.85 mm

    0.10 - 2.35 mm
    • GRIN lens numerical aperture 0.5
      Working distance 80 µm
      Base diameter 3.5 mm
      Penetration depth
      Diameter 500 µm - Type D: 0 - 3.0 mm
      - Type V: 2.43 - 5.43 mm
      - Type E: 4.85 - 7.85 mm
      Diameter 1000 µm Type D: 0.1 - 2.35 mm
    • Drawing

      Twist-on Reduced Footprint Imaging Cannula
