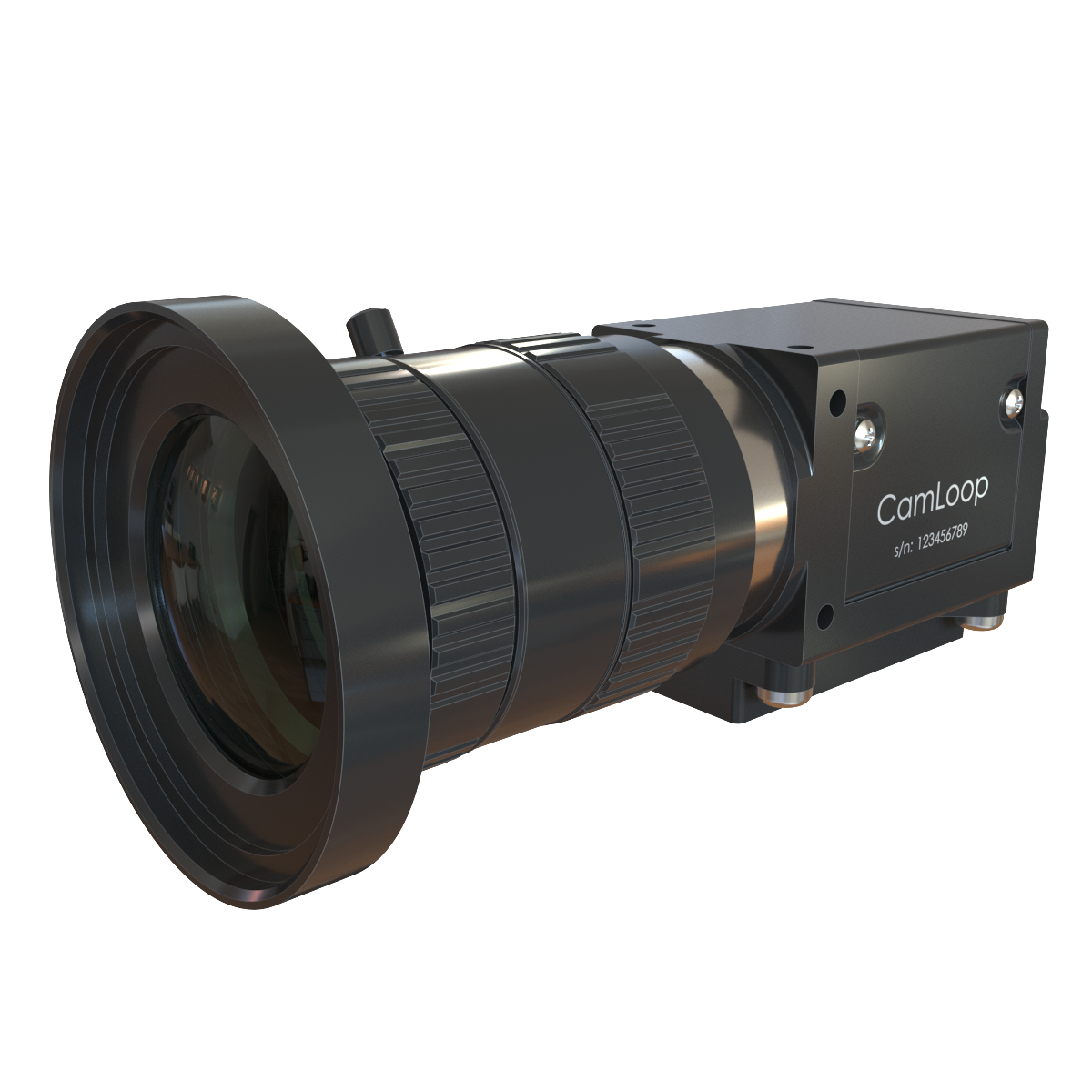

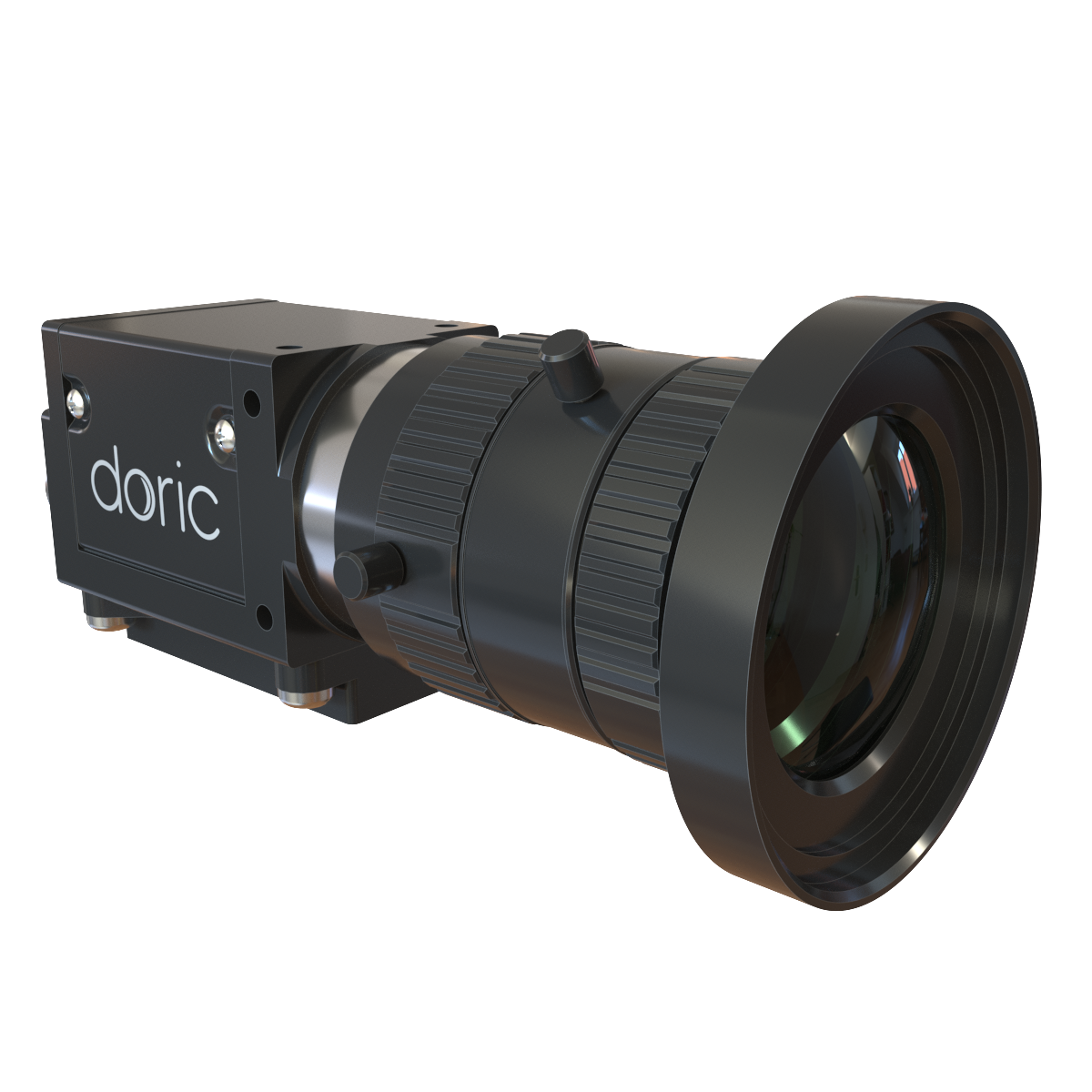

CamLoop

Name: CamLoop
Brand: Doric Lenses Inc.
Availability: InStock

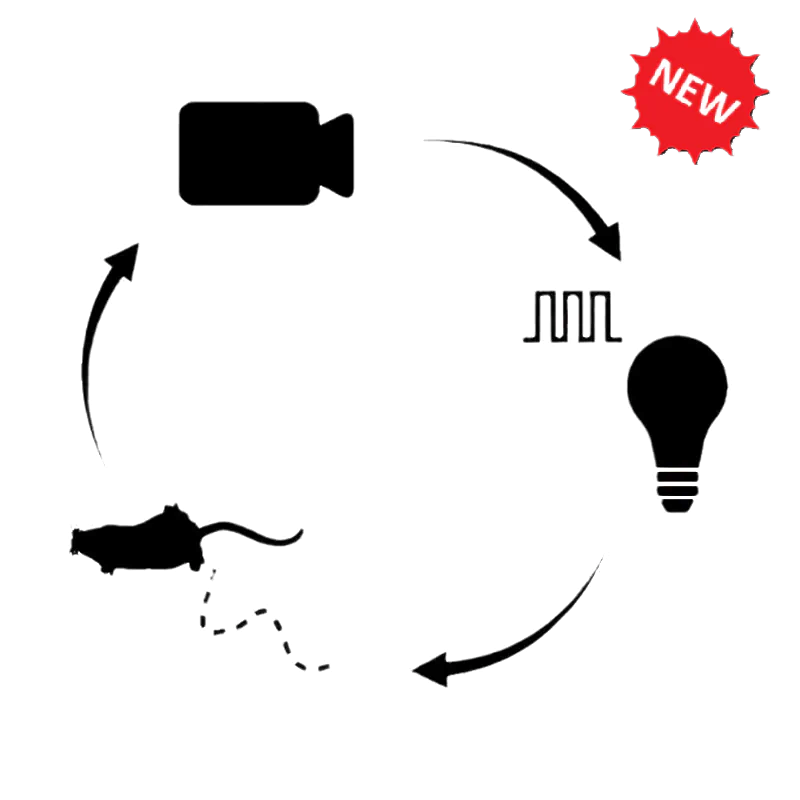

CamLoop is a camera & software solution for real-time animal tracking during behavioral experiments. This solution provides closed-loop stimulation based on real-time position of the animal, enabling interventions such as optogenetics or stimulus delivery (tones, foot shocks, rewards, etc.) that are time-locked to animal's location. Color and B&W* camera options are available.

More information

Ordering Code =


    …generating

Features :

Run up to 2 cameras simultaneously** at 30 FPS
Draw multiple zones within arena
Output TTL and behavior events based on time spent in a zone
Calculate speed & motion score

For full closed-loop functionalities, CamLoop requires at least one of: Doric light source, or BBC300, and will be soon available with NC500 and FMD-Gen.3.

* for infrared illumination, chose B&W option
** tested with Doric High Performance workstation

Item includes :

Camera (monochrome or color)
Large FOV lens (F = 5 mm; F/1.4)
Articulated holder
Data transfer cable (USB3)
Trigger/power cable (Hirose)
Doric Neuroscience Studio (software)

Camera

Resolution	1440 x 1080 px (1.6MP)
Dynamic range	12 bits
Gain	0 to 48 dB
Frame rate	60 fps at full resolution*
Sensor format	1 / 2.9''
Interface	USB 3.0
Shutter type	Global
Minimum exposure	1 ms
Lens mount	C/CS
Dimensions	29 mm x 37 mm x 48 mm
Mass	68 g

* faster for smaller ROI

Objectif lens

Focal length	5 mm
Field of view	53.8 x 40.8 deg (96 x 74 cm at 1 m distance)
Focus	Adjustable (manual) 0.1 m to infinity
Iris	Adjustable (manual) F/1.4 to closed
Dimensions	45 mm x 45 mm x 50 mm
Mass	106 g

*faster for smaller ROI

Minimun Computer Specification

Processor	Intel Core i7 12th gen. 12-core
RAM	2x16GB DDR5 5600
Graphic Card	GeForce RTX 3060 12 GB DDR6
Storage	SSD 2 TB NVMe and hard drive 2 TB SATA
OS	Windows 11 pro
Dimensions	24x53x48 cm
