Behavior Camera
Behavior Camera

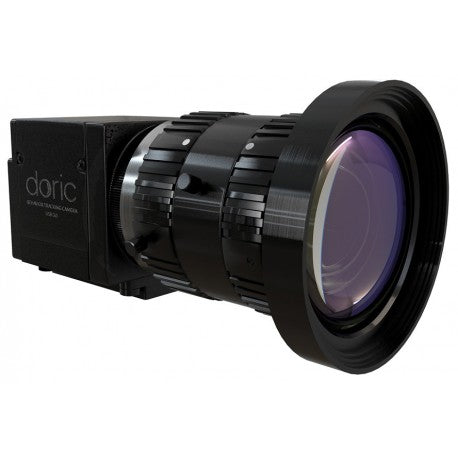

The Doric color or monochrome behavior cameras use USB 3.0 Vision interface standard for high-performance industrial cameras. This interface provides a framework for streaming high-speed video and related control data over USB3 port. The camera control and the image acquisition are done through the Doric Neuroscience Studio software. The system includes a Power/Trigger cable to synchronize with external devices.
…generating
The Doric color or monochrome behavior cameras use USB 3.0 Vision interface standard for high-performance industrial cameras. This interface provides a framework for streaming high-speed video and related control data over USB3 port. The camera control and the image acquisition are done through the Doric Neuroscience Studio software. The system includes a Power/Trigger cable to synchronize with external devices.
Item includes :
- Camera (monochrome or color)
- Large FOV lens (F = 5 mm; F/1.4)
- Articulated holder
- Data transfer cable (USB3)
- Trigger / power cable (Hirose)
| Sensor | Sony IMX290 |
| Resolution | 1920 x 1080 px |
| Gain | 0 to 72 dB |
| Frame rate | 60 fps at full resolution * faster for smaller ROI |
| Pixel size | 2.9 x 2.9µm |
| Sensor format | 1 / 2.8 |
| Interface | USB 3.0 |
| Exposure | 20 µs to 30 sec (rolling shutter) |
| Lens mount | C/CS |
| Focal length | 5 mm |
| Field of view | 51.4 x 65.5 deg (96 x 128 cm at 1 m distance) |
| Focus | Adjustable (manual) 0.1 m to infinity |
| Iris | Adjustable (manual) F/1.4 to closed |
| Exposure | 20 µs to 30 sec |
| Dimensions | 29 mm x 29 mm x 57 mm |
| Mass | Camera: 68 g Lens: 106 g |
