Ce:YAG Bandpass Filters
Ce:YAG Bandpass Filters
To match the excitation spectra of light sensitive molecules (e.g. opsins, fluorescent proteins, ...) the large emission spectrum of Ce:YAG fiber light sources can be narrowed with a bandpass filter.
Ordering Code =
…generating
To match the excitation spectra of light sensitive molecules (e.g. opsins, fluorescent proteins, ...) the large emission spectrum of Ce:YAG fiber light sources can be narrowed with a bandpass filter.

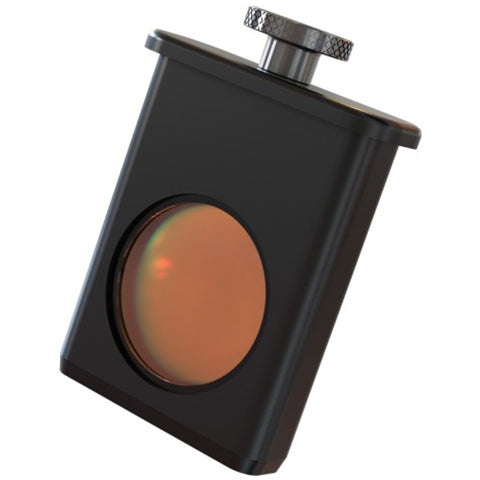

Notes- Each Ce:YAG Optical Head is delivered with an empty Filter Holder for Ce:YAG Fiber Light Source (YFH). This holder can accept up to 5 mm thick filters of 25 or 25.4 mm diameter.
- Single Ce:YAG optical head (YAGH) and combined Ce:YAG optical heads (with an LED (YLEDH) or a Laser diode (YLDH)) have different filter holders.
Table below is our standard offer of filter specified by their central wavelength and spectral bandwidth at full-width half maximum (FWHM).
Test table kapil
| Bandpass filters for Ce:YAG optical heads | |||
| Central Wavelength (nm) | Bandwidth FWHM (nm) | Ordering Code | |
| 525 | ~30 | YBPF_525/030 | |
| 549 | ~15 | YBPF_549/015 | |
| 559 | ~34 | YBPF_559/034 | |
| 582 | ~75 | YBPF_582/075 | |
| 593 | ~40 | YBPF_593/040 | |
| 612 | ~69 | YBPF_612/069 | |
