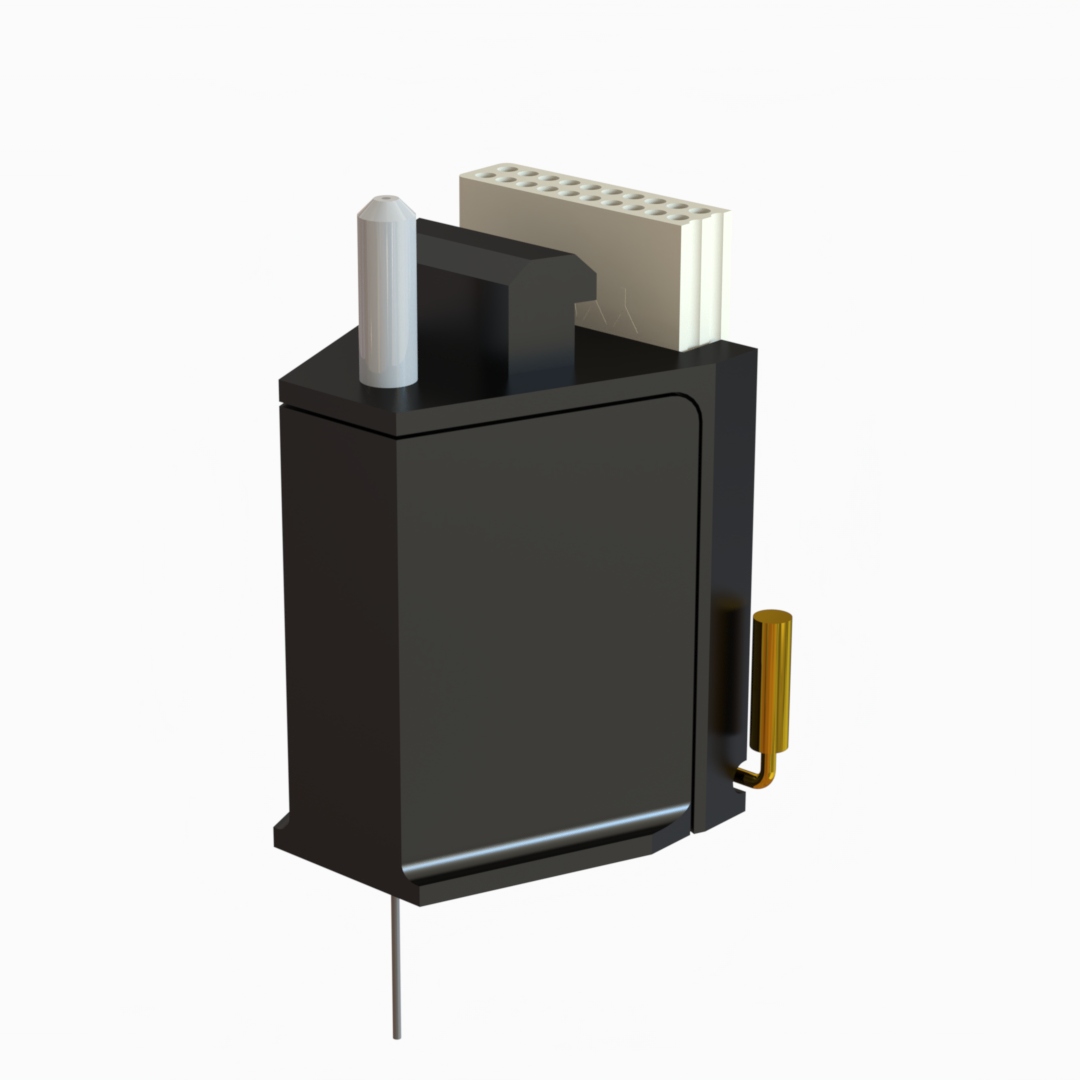

Optoelectric Cannula - multiple electrodes

  • Unit price per


Ordering Code:
  • Our optoelectric cannulas combine an optical fiber for optogenetics and/or photometry with 1 to 16 electrodes for electrophysiology recordings in freely-moving animals. The electrodes are connected via a 18 pins connector to Doric electrophysiology tethered headstage. We offer tungsten wire electrodes with diameter of 25, 35, 50 microns for single unit, multi units or field potential recording. Custom configurations are available upon request, likeĀ the type of electrodes, the number of optical fibers and the dispositionĀ of the optical fibers andĀ electrodes.

  • DESCRIPTION Impedance
    (Ohm)
    RECOMMENDED USE Ā CODE
    Ā  1x8 linear array of 35 Āµm tungsten wire with 45 deg angled tip Ā 0.2 to 0.8 M single unit and LFP L8-W35-A45
    Ā 50 Āµm tungsten wire with flat tip Ā 0.1 to 0.5 M single unit and LFP W50-FLT
    Ā 50 Āµm tungsten wire with 45 deg angled tip Ā 0.1 to 0.5 M Ā single unit and LFP W50-A45
    Ā 75 Āµm tungsten wire with tapered tip Ā 0.1 M Ā LFP 0.1M-75
    Ā 0.5 M Ā LFP 0.5M-75
    Ā 1.0 M Ā Multi unit 1.0M-75
    Ā 1.5 M Ā Multi unit 1.5M-75
    Ā 2.0 M Ā Single and Multi unit 2.0M-75
    Ā 2.5 M Ā Single and Multi unit 2.5M-75
    Ā 3.0 M Ā Single unit 3.0M-75
    Ā 5.0 M Ā Single unit 5.0M-75
  • Dimensions 9 x 9 x 10 mm
    Mass 0.8 gr
    Connector Omnetics NPD-18-DD-GS connector
    Optical connector 1.25 mm zirconia ferrule
  • Click to download the Application Note


    The light propagation into brain tissue will vary with the optical fiber type and the light source parameters.Ā  It can be visualizedĀ in thisĀ
    Application NoteĀ (the French version is availableĀ here).







    Description Drawing Code Note
    Flat Tip FLT
    Conical Tip

    C45

    C60

    Rounded tip thickness: ~0.1x to 0.2x core diameter

    Standard angles: 45Ā°,Ā 60Ā°

    Other angles on request (max 60Ā°)

    Taper Tip TAPERĀ
  • Optoelectric Cannula
      Brochure
    Electrode Pattern
      Around 400um central fiber-optic
    Electrode Pattern
      Around 250um central fiber-optic
    Optoelectric Cannula - multiple electrodes
      Drawing
