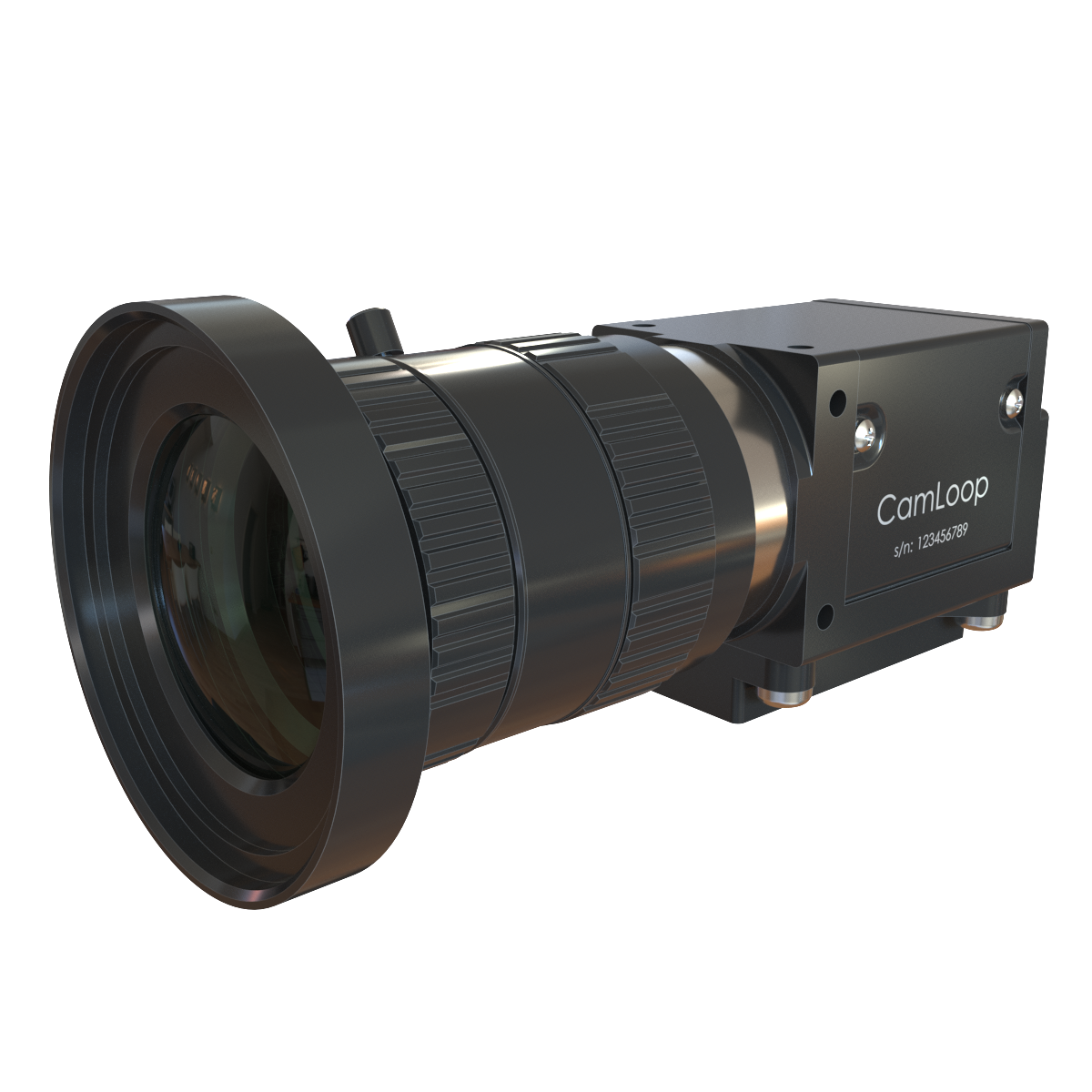

CamLoop
-

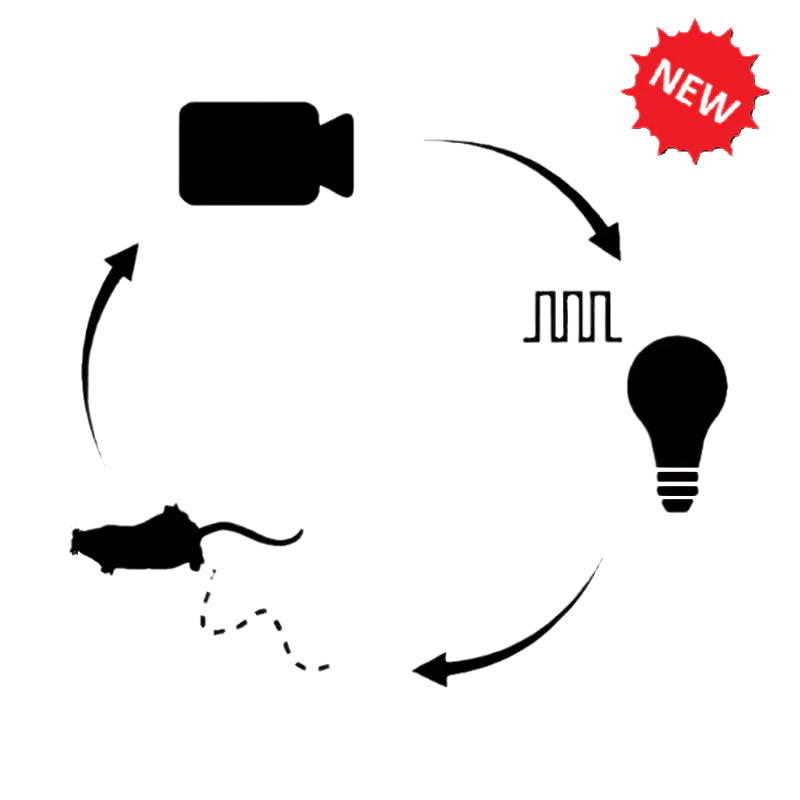

CamLoop is a camera & software solution for real-time animal tracking during behavioral experiments. This solution provides closed-loop stimulation based on real-time position of the animal, enabling interventions such as optogenetics or stimulus delivery (tones, foot shocks, rewards, etc.) that are time-locked to animal's location. Color and B&W* camera options are available.
Features :-
Run up to 2 cameras simultaneously** at 30 FPS
-
Draw multiple zones within arena
-
Output TTL and behavior events based on time spent in a zone
-
Calculate speed & motion score
For full closed-loop functionalities, CamLoop requires at least one of: Doric light source, or BBC300, and will be soon available with NC500 and FMD-Gen.3.
* for infrared illumination, chose B&W option
** tested with Doric High Performance workstation
Item includes :-

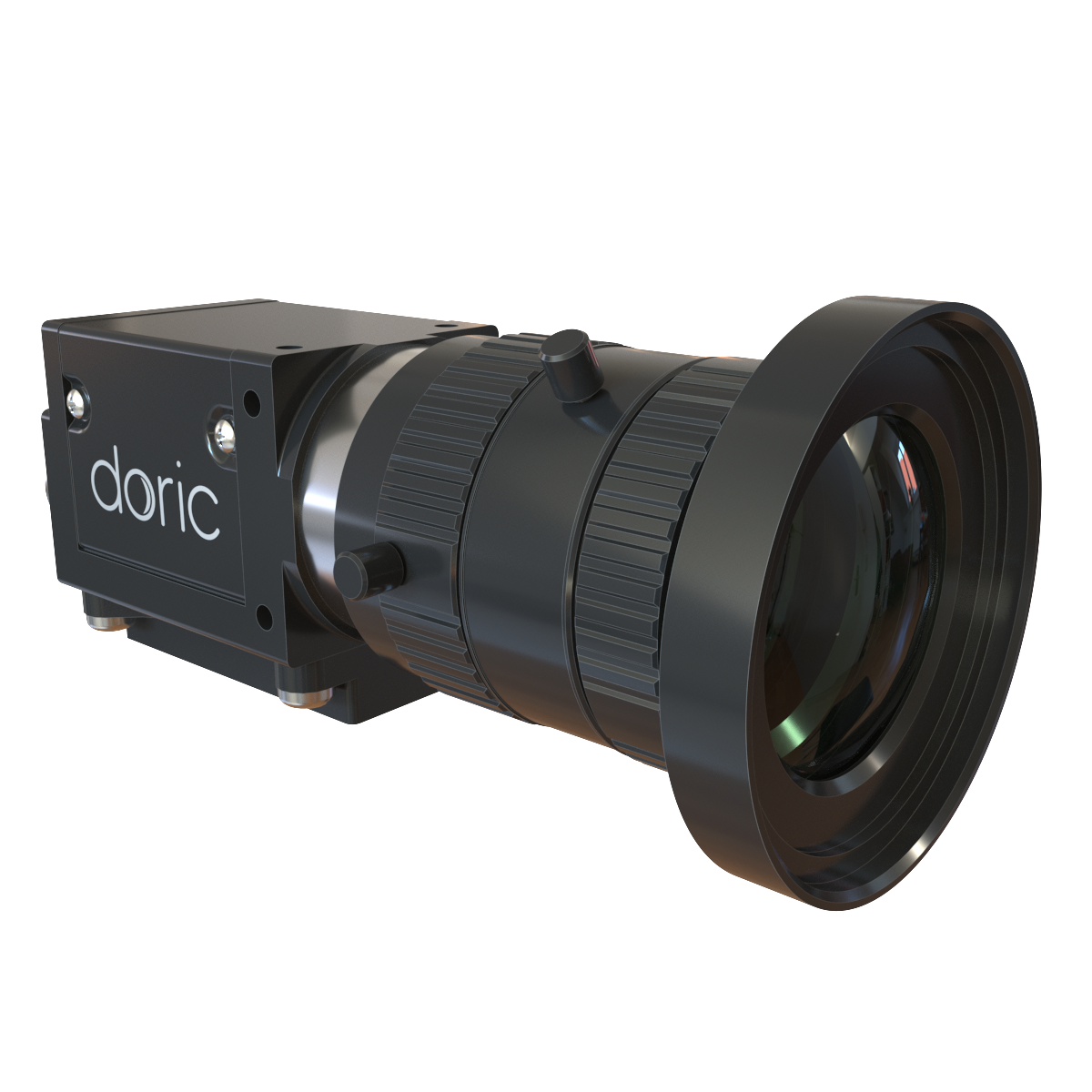

Camera (monochrome or color)
-
Large FOV lens (F = 5 mm; F/1.4)
-
Articulated holder
-
Data transfer cable (USB3)
-
Trigger/power cable (Hirose)
-
Doric Neuroscience Studio (software)
-
Camera
| Resolution | 1440 x 1080 px (1.6MP) |
| Dynamic range | 12 bits |
| Gain | 0 to 48 dB |
| Frame rate | 60 fps at full resolution* |
| Sensor format | 1 / 2.9'' |
| Interface | USB 3.0 |
| Shutter type | Global |
|
Minimum exposure |
1 ms |
| Lens mount | C/CS |
| Dimensions | 29 mm x 37 mm x 48 mm |
| Mass | 68 g |
* faster for smaller ROI
Objectif lens
| Focal length | 5 mm |
| Field of view | 53.8 x 40.8 deg (96 x 74 cm at 1 m distance) |
| Focus | Adjustable (manual) 0.1 m to infinity |
|
Iris |
Adjustable (manual) F/1.4 to closed |
| Dimensions | 45 mm x 45 mm x 50 mm |
| Mass | 106 g |
*faster for smaller ROI
Minimun Computer Specification
| Processor | Intel Core i7 12th gen. 12-core |
| RAM | 2x16GB DDR5 5600 |
| Graphic Card |
GeForce RTX 3060 12 GB DDR6 |
| Storage | SSD 2 TB NVMe and hard drive 2 TB SATA |
| OS | Windows 11 pro |
| Dimensions | 24x53x48 cm |
