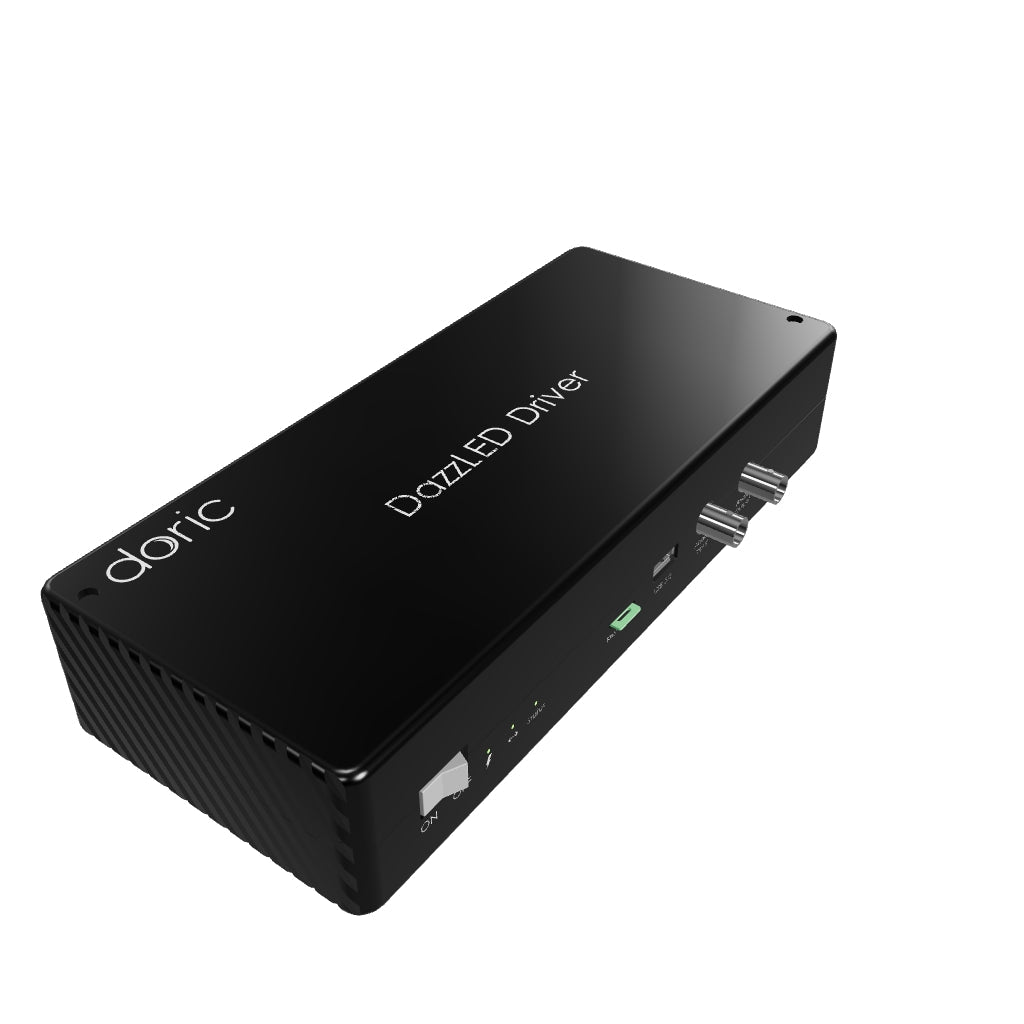

DazzLED Driver

DazzLED Driver

The DazzLED driver powers the DazzLED for all your experiments. You can control the DazzLED using the Doric Neuroscience Studio software or via a BNC port, which allows for analog current modulation up to 10 kHz.

Ordering Code = …generating
The DazzLED driver powers the DazzLED for all your experiments. You can control the DazzLED using the Doric Neuroscience Studio software or via a BNC port, which allows for analog current modulation up to 10 kHz.

This driver can be connected to the Light Source Remote Controller, enabling a computer-free solution.

Note:
  • AC/DC power supply is supplied to match customer location electrical outlet standard.
Operating ModesComputer (USB)
Light Source Remote Controller (USB)
External TTL
External Analog
TTL ModulationHI > X.X V
LOW < X.X V
Analog modulation0 - 5 V (2.4 A/V)
Output current0 - 10 A
Max Forward Voltage9.8 V
Rise / Fall time< 15 µsec
Max modulation frequency10 kHz
Alimentation24 V 11.6 A
Dimensions243 mm x 50 mm x 107 mm
Mass840 g
Drawing

DazzLED Driver
User Manual FR EN
