DazzLED
DazzLED

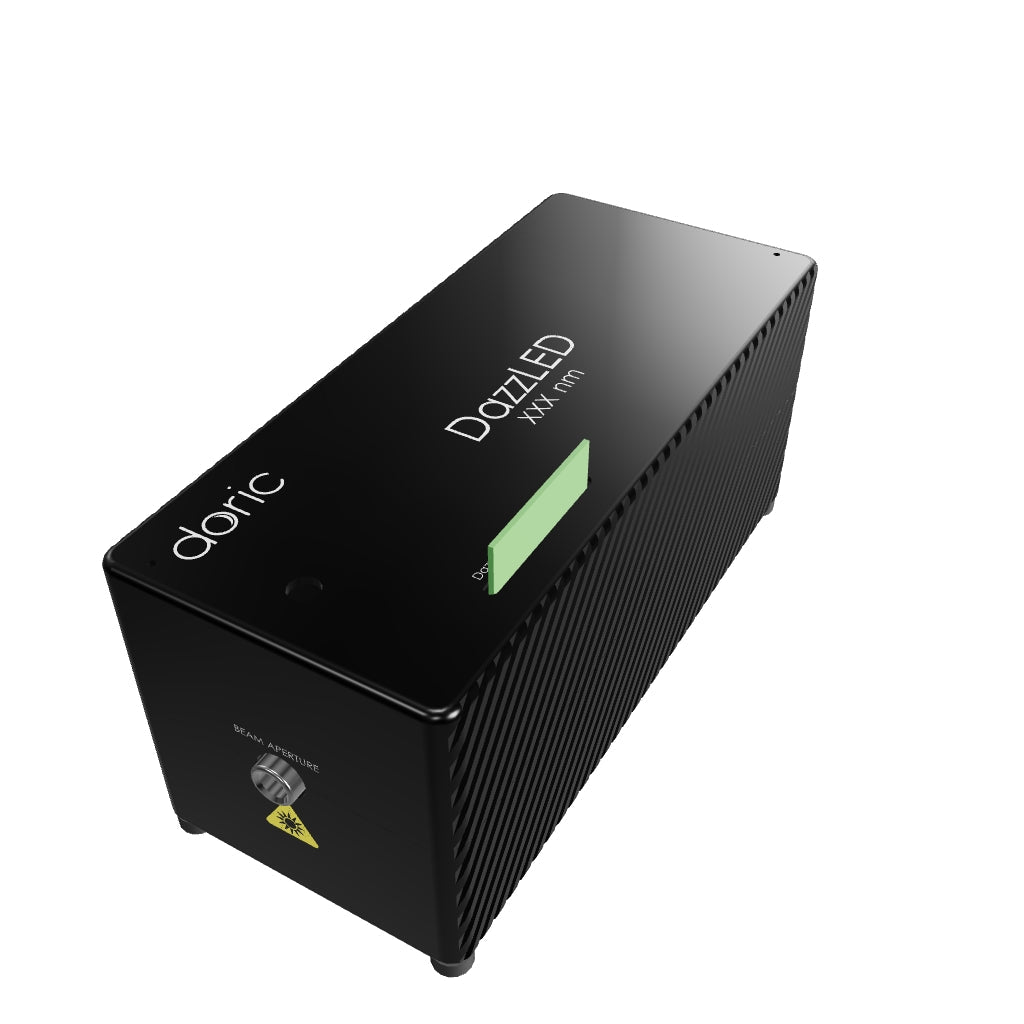

DazzLED is the new high-power light source developed by Doric. This light source is ideal for microscopy applications and for injecting light into a multifiber bundle.
The DazzLED output is a liquid light guide (LLG) that can then be injected into fibers terminated with an SMA connector.
Ordering Code =
…generating
DazzLED is the new high-power light source developed by Doric. This light source is ideal for microscopy applications and for injecting light into a multifiber bundle.
The DazzLED output is a liquid light guide (LLG) that can then be injected into fibers terminated with an SMA connector.
| LED | Typical Output Power @ Max Current [ mW ] |
||||||
| Central Wavelength [ nm ] |
Bandwidth FWHM [ nm ] |
Maximum Current (CW) [ mA ] |
Maximum Current (Pulsed) [ mA ] |
LLG 3 mm NA 0.72 |
200 µm NA 0.57 |
400 µm NA 0.57 |
|
| 432 | 18 | 10 | 12 | 4600 | 19 | 81 | |
| 450 | 23 | 10 | 12 | 3900 | 16 | 68 | |
| 520 | 96 | 10 | 12 | 3200 | 14 | 57 | |
| 620 | 17 | 8 | 8 | 1500 | 6 | 26 | |
Updated 2026-06-18 - typical powers measured with Pronto-Si and UNO power meter.
Actual power of LEDs can be +/-15%
| Light Output | Liquid Light Guide diam. 3mm |
| Liquid Light Guide | 3mm core diameter |
| NA 0.72 | |
| 1m length | |
| Optical Power | See Power Table tab |
| Max Input Current | See Power Table tab |
| Dimensions | 243mm x 112mm x 107mm without cable |
| Mass | 2.2kg |
