2-color Fluorescence Microscopy System

2-color microscopy systems are designed to record simultaneously the fluorescence of red (RFP-like) and green (GFP-like) fluorescent markers. In opposition to single color microscope bodies, 2-color microscope bodies are optimized for a specific imaging depth. Available options are:


• 2-color Model S: 0 - 150 µm deep below the brain surface (with a glass window)
• 2-color Model L-D: 0 - 3.4 mm deep below the skull surface
• 2-color Model L-V: 3.0 - 5.9 mm deep below the skull surface

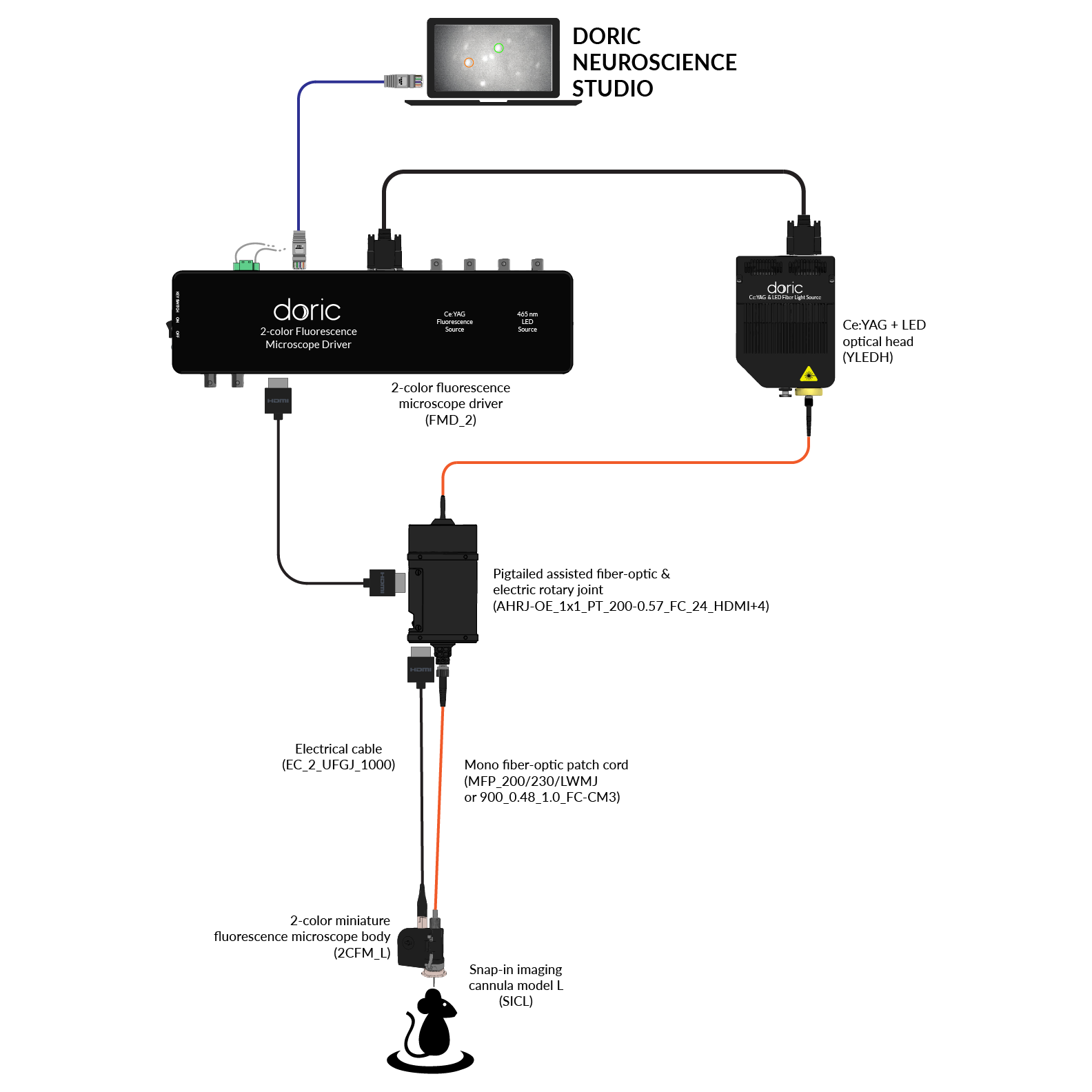

The systems include:


• 2-color Microscope Body, Model S, L-D or L-V depending on the targeted depth
• 2-color Fluorescence Microscope Driver, to control the microscope
• Ce:YAG + Blue LED Light Source, for Green and Red Fluorescent markers excitation
• Optical fiber patch cords, to connect the light source to the microscope
• Doric Neuroscience Studio Software

Add optional items:

• Assisted 1x1 Pigtailed Fiber-optic & Electric Rotary Joint - HDMI+4, 24 contacts
• 2-color Snap-in Microscope Dummy, Model S or L
• 2-color Fluorescence Microscope Holder
• Clamp for Fluorescence Microscope Holder
• Behavior Camera to record animal behavior
• Workstation
• danse™ analyzing software

Complete your system with:

• Snap-in Imaging Cannula, Model S, or Snap-in Imaging Cannula, Model L, depending on the targeted depth
• Protrusion Adjustment Ring Set Model S or L
