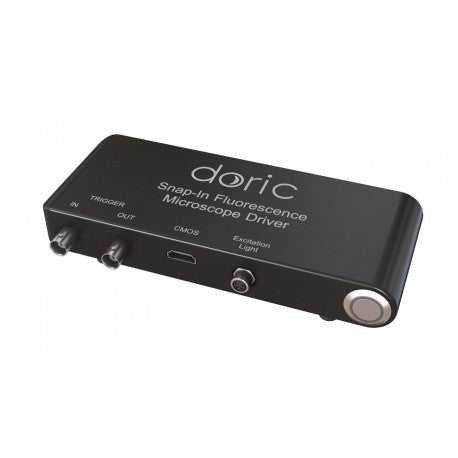

Fluorescence Microscope Driver
Fluorescence Microscope Driver
This driver is used to control the following Miniaturized Microscope Bodies :
Snap-in Deep brain Fluorescence Microscope Bodies (SFMB, OSFM).
Ordering Code =
…generating
This driver is used to control the following Miniaturized Microscope Bodies :
Snap-in Deep brain Fluorescence Microscope Bodies (SFMB, OSFM).
The driver can control the excitation of the LED light source, the image capturing and its broadcast at video rate via a high-speed Ethernet communication and the Doric Neuroscience Studio software. Trigger IN/OUT BNC ports can be used to trigger or synchronize the microscope with external recording devices, or trigger other devices. The available ports are the following:
- 1 Digital input TTL (BNC connector)
- 1 Digital output TTL (BNC connector)
- 1 Microscope port (HDMI)
- 1 LED connector (M8)
- Ethernet port for computer connection
| Dimensions | 186 x 90 x32 mm |
| DC power supply | 12 VDC |
| Data Link | Ethernet |
| Weight | 379 g |
| Computer requirements | Desktop Computer recommended, Intel Core-i7, 8 GB RAM, Gigabit Ethernet and Jumbo frame compatible, Graphic card with 2 GB memory and OpenGL v4.6 compatible |
