Snap-in Fluorescence Microscope Bodies Model S
Snap-in Fluorescence Microscope Bodies Model S
Surface Snap-in microscope bodies are optimized to image brain structures up to 150 um deep without using invasive implants. As no GRIN lenses are being used, the image quality of these microscopes is higher than the one of deep brain microscopes.
The long working distance of surface microscopes bodies allows to image brain structures through a chronically implanted glass window.
Notes:
• The ultralight fiberglass jacket is lighter and more flexible, the lightweight metal jacket is more robust but heavier.
• The standard electrical cable length is 1000 mm. Other values on request (up to 3000 mm).
• The optical fiber length is adjusted to fit the desired electrical cable length.
• Every microscope body comes with a protective cap.
…generating
Surface Snap-in microscope bodies are optimized to image brain structures up to 150 um deep without using invasive implants. As no GRIN lenses are being used, the image quality of these microscopes is higher than the one of deep brain microscopes.
The long working distance of surface microscopes bodies allows to image brain structures through a chronically implanted glass window.
Notes:
- The ultralight fiberglass jacket is lighter and more flexible, the lightweight metal jacket is more robust but heavier.
- The standard electrical cable length is 1000 mm. Other values on request (up to 3000 mm).
- The optical fiber length is adjusted to fit the desired electrical cable length.
- Every microscope body comes with a protective cap.
The following video demonstrates the implantation of a snap-in cannula and the installation of a miniaturized fluorescence microscope (the implantation of surface and deep brain imaging cannulas are similar).
| Field of view | 700 µm x 700 µm (630 pixels x 630 pixels) |
| Lens magnification | 3.3x |
| Objective lens NA | 0.5 |
| Frame rate | 45 fps |
| Dimensions without cannula & cables (W x L x H) | 8.8 mm x 13.9 mm x 16.6 mm |
| Mass excluding cannula & cables | 2.2 g |
| Computer requirements | - Intel Core-i7 - 16GB RAM - Gigabit Ethernet, Jumbo frame compatible - Dedicated graphic card |
| Fluorescence recording | |
|---|---|
| Green fluorescence bodies | - Excitation 458 / 35 nm - Emission 525 / 40 nm |
| Red fluorescence bodies | - Excitation 540 / 15 nm - Emission 609 / 57 nm |
| Optogenetic stimulation* | |
| Green fluorescence bodies | - spectral bandwith 612 / 69 nm - activation intensity 0 to 55 mW/mm2 |
| Red fluorescence bodies | - spectral bandwith 465 / 20 nm |

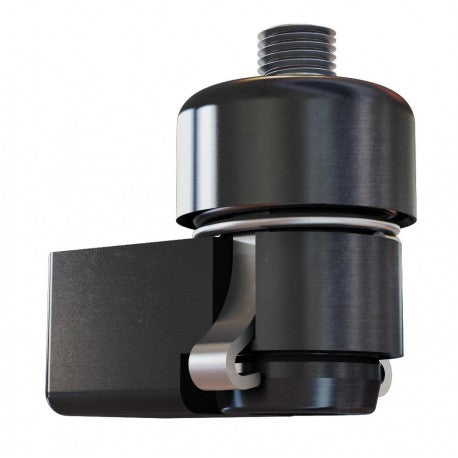

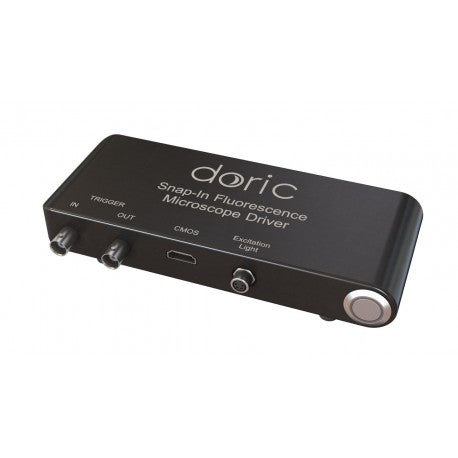

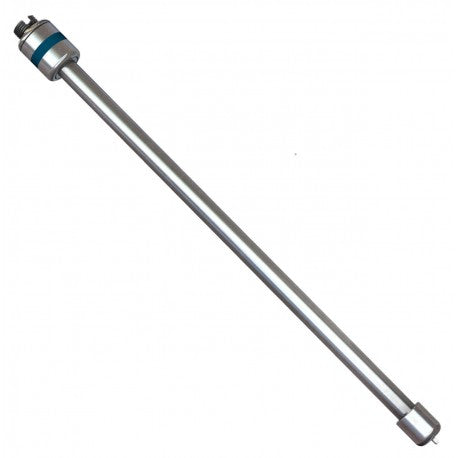

Related products
-
