Optical Injector for Dual Optofluid Cannula with Interchangeable Injectors

Optical Injector for Dual Optofluid Cannula with Interchangeable Injectors
Optical Injector for Dual Optofluid Cannula with Interchangeable Injectors


Ordering Code:

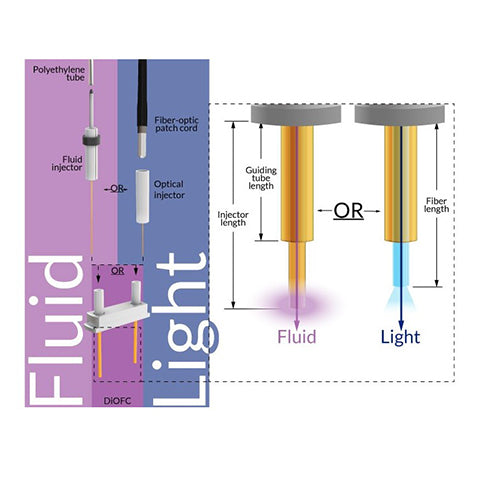

  • Those optical fibre injector are designed to use with Dual Optofluid Cannula with interchangeable injectors (DiOFC).  Injector includes a 1.25 mm sleeve to connect to DiOFC ferrule.  Optical fibre protrusion length should be precisely define according to the DiOFC tube length.


    Fiber-optic Codes for Multiple Fluid Injection Cannula
    Core (μm) Outer (μm) NA Buffer Color Outer Layer Fiber-Optic Code
    100 125 0.22 Yellow Polyimide 100/125-0.22
    100 125 0.37 Yellow Polyimide 100/125-0.37
    100 125 0.66 Clear Borosilicate 100/125-0.66
    200 240 0.22 Yellow Polyimide 200/240-0.22
    200 245 0.37 Yellow Polyimide 200/245-0.37
    200 250 0.66 Clear Borosilicate 200/250-0.66
    300 360 0.37 Yellow Polyimide 300/360-0.37
    300 370 0.22 Yellow Polyimide 300/370-0.22
    400 430 0.66 Clear Borosilicate 400/430-0.66
    400 470 0.37 Yellow Polyimide 400/470-0.37
    400 480 0.22 Yellow Polyimide 400/480-0.22

    * Angled(A45, A60) and mirror (MA45) tips are not offered.
  • Drawings

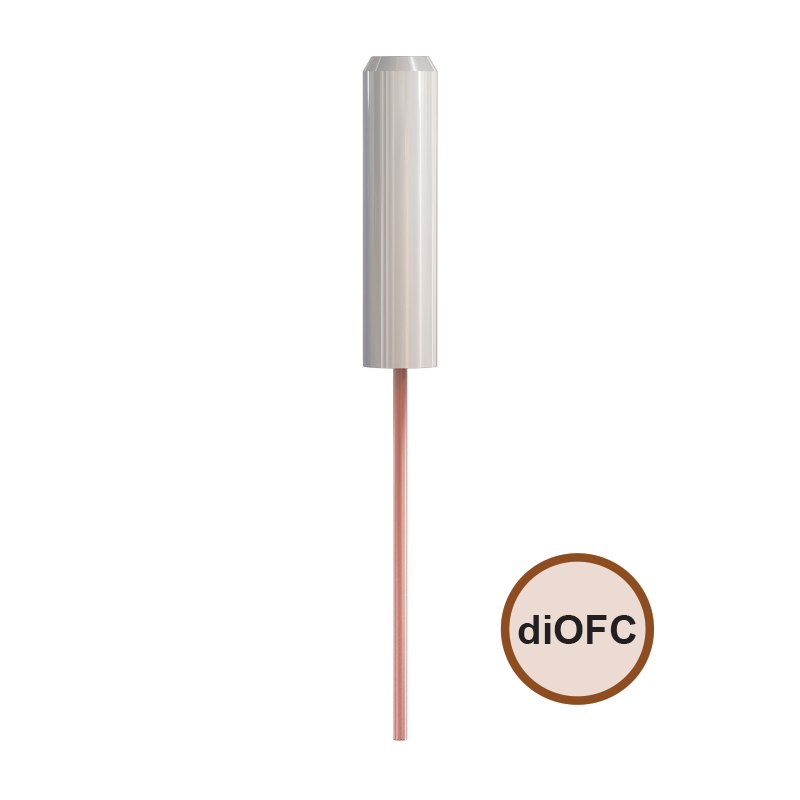

    OI-DiOFC
