Isosbestic LED

Isosbestic LED

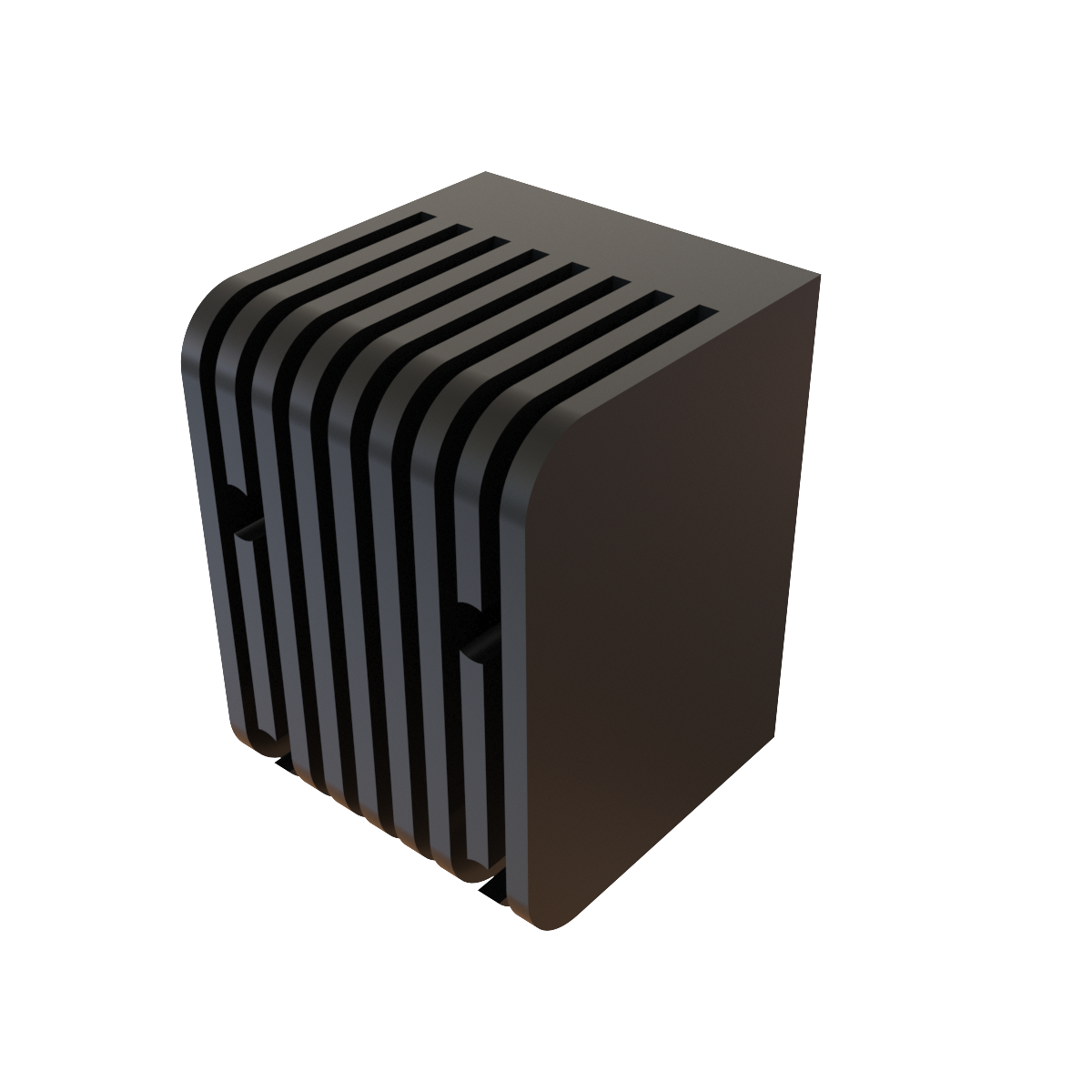

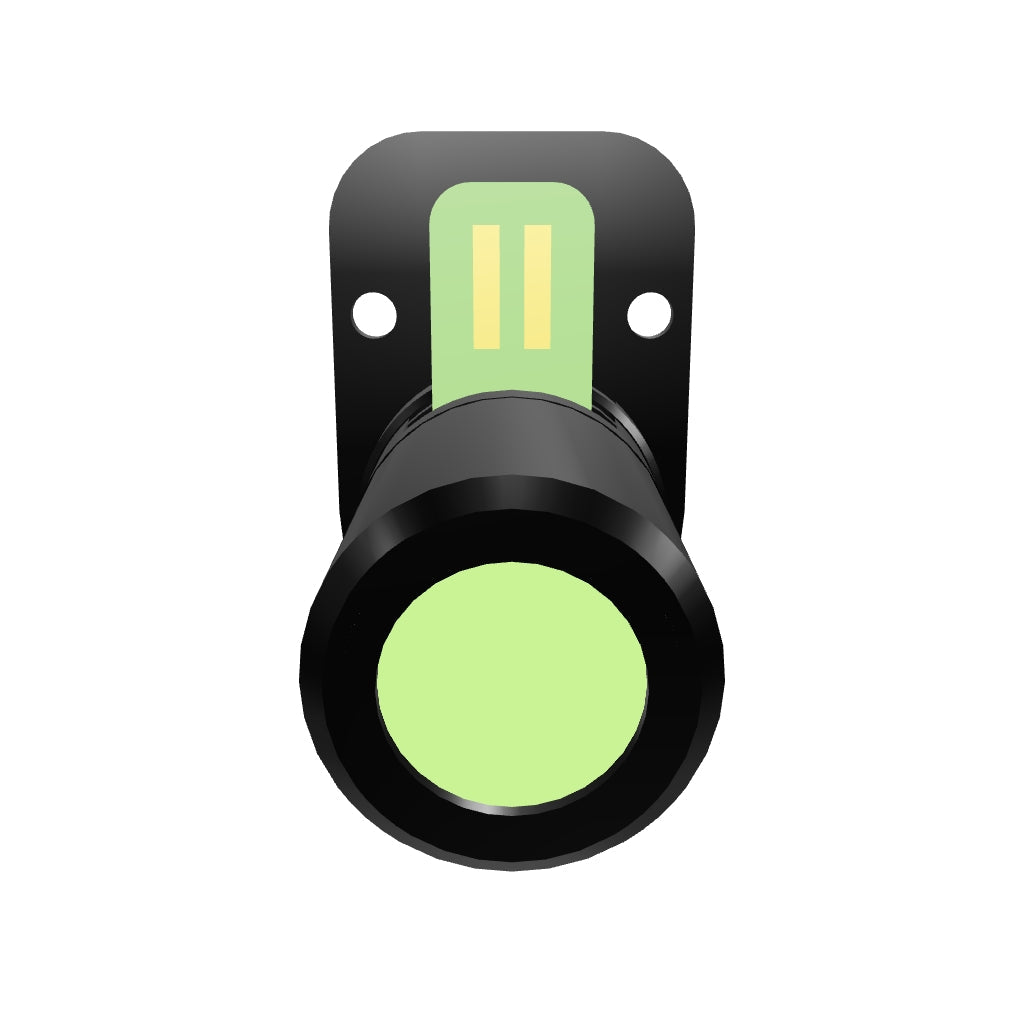

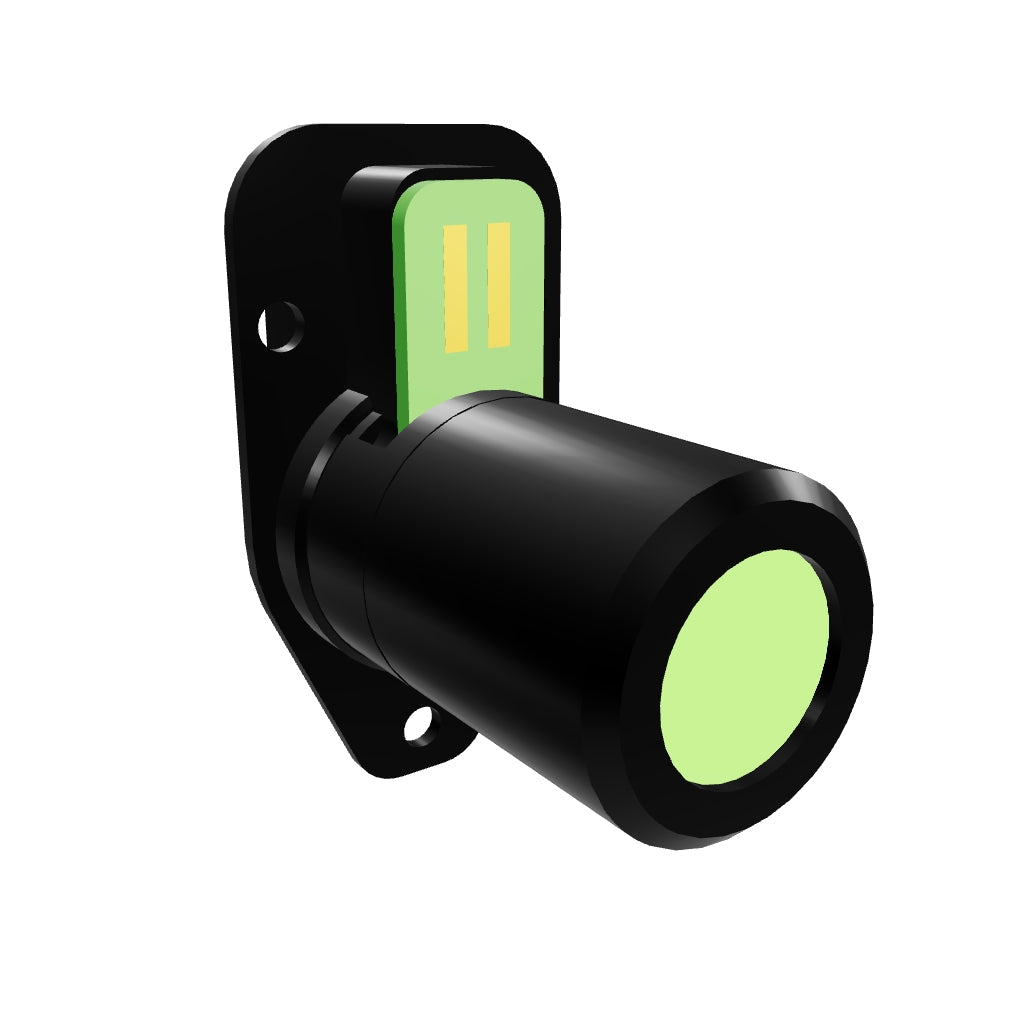

This isosbestic LED (ILED) can be swapped to change the isosbestic excitation of an existing integrated Fluorescence Mini Cube (ilFMC-G3) or the Rotary Bundle-imaging Fluorescence Mini Cube (RBFMC-G2), respectively. The ILED provides a simple solution to expand to new biosensors. The iLED comes in four possible options: 405 nm, 415 nm, 425 nm, and 440nm. Each ILED comes with a bandpass filter that narrows the excitation wavelength to a ~10nm bandwidth.

Ordering Code = …generating

This isosbestic LED (ILED) can be swapped to change the isosbestic excitation of an existing integrated Fluorescence Mini Cube (ilFMC-G3) or the Rotary Bundle-imaging Fluorescence Mini Cube (RBFMC-G2), respectively. The ILED provides a simple solution to expand to new biosensors. The ILED comes in four possible options: 405 nm, 415 nm, 425 nm, and 440nm. Each ILED comes with a bandpass filter that narrows the excitation wavelength to a ~10nm bandwidth.

All 3rd generation integrated fluorescence mini cubes (ilFMC-G3) since April 2025 include optics that are compatible with a removable isosbestic LED. As are all RBFMC-G2 since March 2026.

Optical fiber compatibility- Core diameter 200 to 400µm
- NA 0.37 to 0.57
Spectral bandwith

- Isosbestic Excitation

  • 400-410 nm
  • 410-420 nm
  • 451-433 nm
  • 433-445 nm
Max Current500 mA
Emitter size400 µm diameter - NA0.22
Max Output power
(fibre µm)		LED 400-410 nm
= 60 µW (at 200 mA, CW)*

* with the ND filter T=10% included.

Drawing

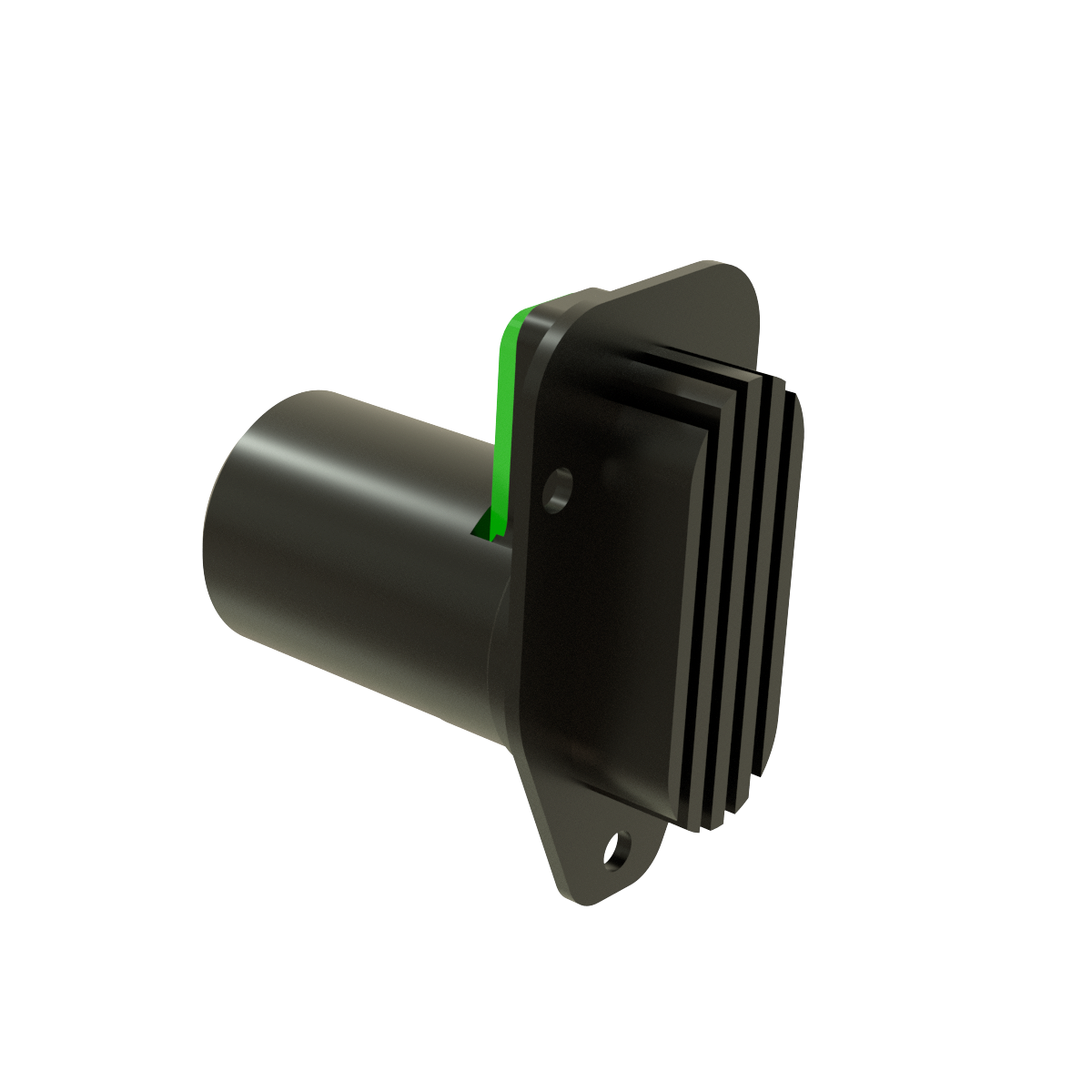

RBFMC Isosbestic LED
