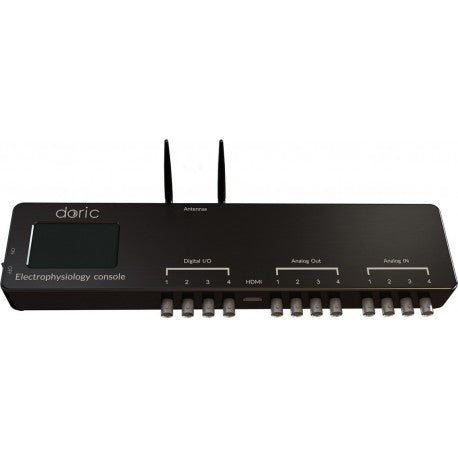

This FPGA-based console supports two-way communication between the computer and the tethered ephys headstages or fiber photometry system. At the beginning of the experiment, the console sets the recording parameters and the fiber photometry excitation sequence in the Doric Neuroscience Studio (DNS) software. The recording or light delivery can also be triggered by external sources as touch sensor or tracking software, etc.

The Electrophysiology and Fiber Photometry Console handle one tethered headstage HS-T16 that record 4 electrodes at 25 kHz, 8 electrodes at 20 kHz, or 16 electrodes at 10 kHz. Additionally, it support multiple fiber photometry recordings using lockin amplifier or time-interleaving detection. Data can be displayed, commented, saved, and pre-analysed with DNS software.

Ordering Code = …generating

This FPGA-based console supports two-way communication between the computer and the tethered ephys headstages or fiber photometry system. At the beginning of the experiment, the console sets the recording parameters and the fiber photometry excitation sequence in the Doric Neuroscience Studio (DNS) software. The recording or light delivery can also be triggered by external sources as touch sensor or tracking software, etc.  The Electrophysiology and Fiber Photometry Console handle one tethered headstage HS-T16 that record 4 electrodes at 25 kHz, 8 electrodes at 20 kHz, or 16 electrodes at 10 kHz. Additionally, it support multiple fiber photometry recordings using lockin amplifier or time-interleaving detection. Data can be displayed, commented, saved, and pre-analysed with DNS software.


Main features:

  • 1 Digital communication to record 1 tethered headstage
  • 4 BNC connector for Digital Input/Output TTL (could be used as triggers)
  • 4 BNC connectors for 4 Analog Output 5 V, 16 bits
  • 4 BNC connectors for 4 Analog Input +/- 10 V
  • USB2 connection to a computer, cable included
  • Compatible with Doric Neuroscience Studio
  • Free updates of Doric Neuroscience Studio software
Digital SPI
InterfaceHDMI
Sample rate- up to 8 ch @ 20 kSps
- up to 16 ch @ 10 kSps
Digital IO
Interface4x BNC
TTL level5 V
Sample rate25 MSps
Analog Output
Interface4x BNC
Output Voltage± 4.75 V
Impedance6 Ω
Sample Rate25 MSps
DAC Resolution16 bits
Analog Input
Interface4x BNC
Input Voltage± 10.0 V
Impedance100 - 124 kΩ
Sample Rate0.3, 1.0, 6.0, 12.1 kSps
ADC Resolution16 bits
Dimensions360 mm x 99 mm x 37 mm
Mass800 grams
Drawing

Electrophysiology and Fiber Photometry Console
