1x2 Fiber-optic Rotary Joints - Intensity Division

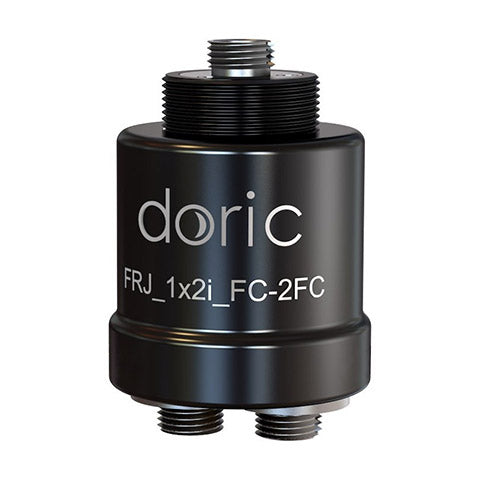

This connectorized joint sends the light from an optical fiber on a fixed side into two optical fibers on a rotating side in a 50:50 split. All three connector receptacles are of the FC type. The 50:50 split is essential for bilateral optogenetic stimulation experiments.
Ordering Code =
…generating
This connectorized joint sends the light from an optical fiber on a fixed side into two optical fibers on a rotating side in a 50:50 split. All three connector receptacles are of the FC type. The 50:50 split is essential for bilateral optogenetic stimulation experiments.
- 1x2 Fiber-optic Rotary Joints

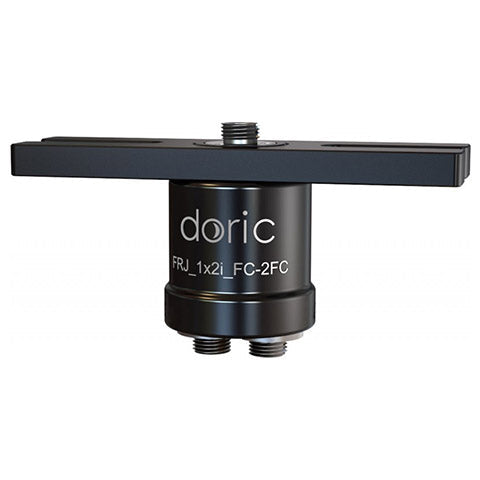

- Holder

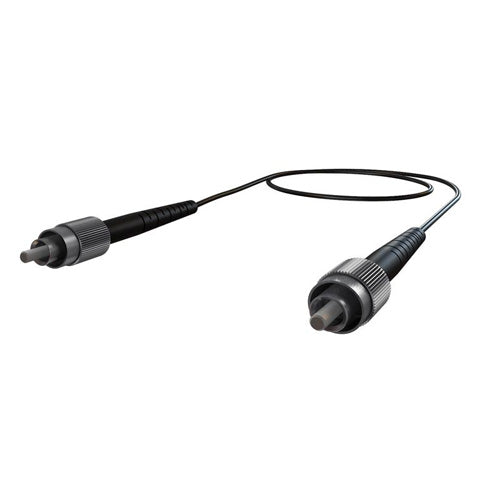

- 2 Mono Fiber-optic Patch Cords
Optional items :

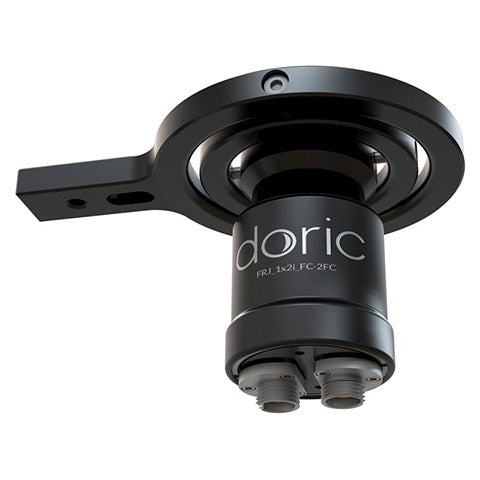

- Gimbal Holder allows the rotary joint to pivot along two additional axes, further reducing the mechanical stress on the animal.
Note : In the case of 0.5 NA in output, the rotary joint internally converts NA from 0.22 input to 0.5 output.
Not suitable for:
- Photometry
| Transmission | > 40% per output tested with 200 µm core, NA 0.22 fiber-optic patch cords |
| Variation in Rotation | +/- 3% of the mean |
| Split Ratio | < 5 % difference between output A and B |
| Input NA | 0.22 |
| Output NA | 0.22 or 0.50 |
| Start up torque | 30 µN·m |
| Length | 53 mm |
| Outer Diameter | 31 mm |
| Mass | 56 g |
| Holder | Holder_FRJ_large included |
