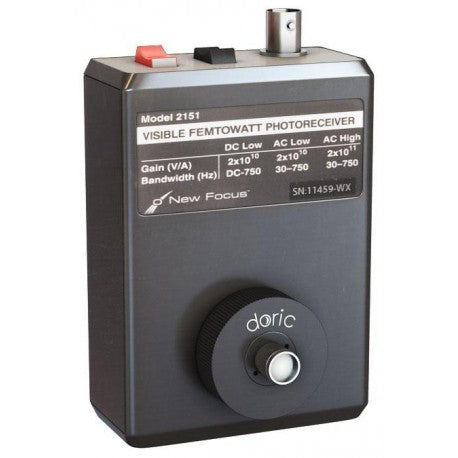

Newport Visible Femtowatt Photoreceiver Module
Newport Visible Femtowatt Photoreceiver Module

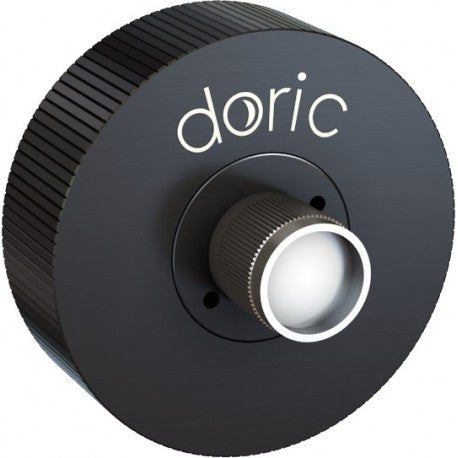

This battery-operated photoreceiver has high gain and detects CW light signals in the sub-picowatt to nanowatt range. When used in conjunction with a modulated light source and a lock-in amplifier to reduce the measurement bandwidth, it achieves sensitivity levels in the femtowatt range. Doric offer this Newport product with add-on fiber optic adapter that improves coupling efficiency between the large core, high NA optical fibers used in Fiber Photometry and relatively small detector area. Its output analog voltage (0-5 V) can be monitored with an oscilloscope or with a DAQ board to record the data with a computer.
…generating
This battery-operated photoreceiver has high gain and detects CW light signals in the sub-picowatt to nanowatt range. When used in conjunction with a modulated light source and a lock-in amplifier to reduce the measurement bandwidth, it achieves sensitivity levels in the femtowatt range. Doric offer this Newport product with add-on fiber optic adapter that improves coupling efficiency between the large core, high NA optical fibers used in Fiber Photometry and relatively small detector area. Its output analog voltage (0-5 V) can be monitored with an oscilloscope or with a DAQ board to record the data with a computer.
| Amplification level | - Low - High |
| Conversion gain | - 1E10 V/W (AC/DC low) - 1E11 V/W (AC high) |
| Transimpedance gain | - 2E10 V/A (AC/DC low) - 2E11 V/A (AC high) |
| Saturation | 0.5 nW (peak) |
| Responsivity | 0.5 A/W (peak) |
| NEP | less than 16 fW/√Hz |
| Wavelength range | 320-1050 nm |
| Peak Sensitivity Wavelength | 900 nm |
| Electrical interface | BNC |
| Output impedance | 100 Ohm |
| Battery | Internal 9V |
| Bandwidth | DC-750 Hz (DC), 30-750 Hz (AC) at -3dB |
| Dimensions | 107 mm x 64 mm x 45 mm |
| Model | Newport 2151 |
| Detector Material | Si |
| Detector Size | 1.0 x 1.0 mm |
