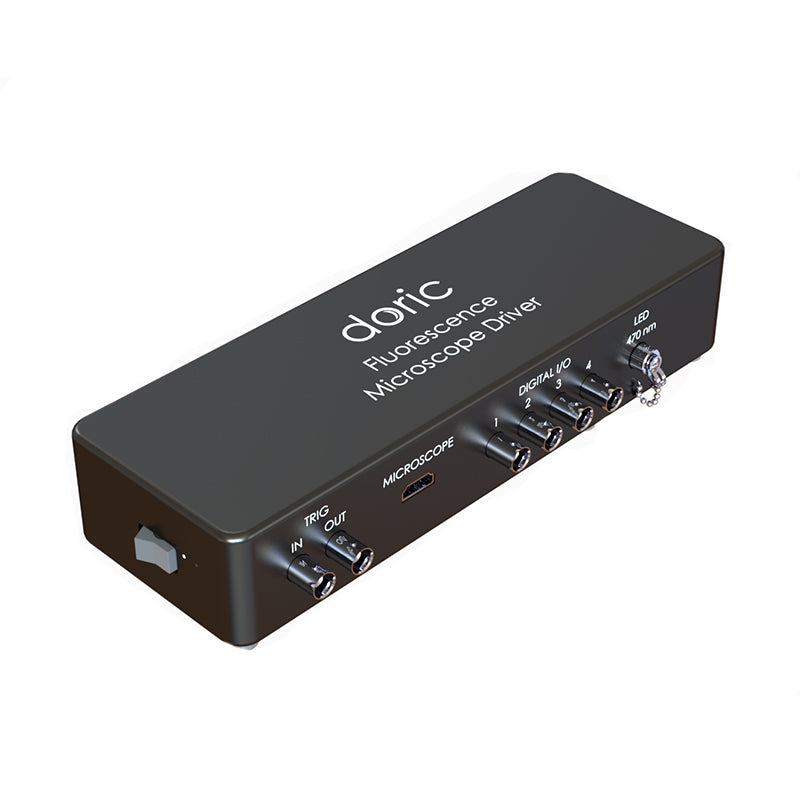

Fluorescence Microscope Driver Gen 3

  • Unit price per


Ordering Code:
  • Fluorescence Microscope Drivers Gen 3 are all integrated drivers that control the video acquisition, and include the light sources. They are designed to be used with efocus Fluorescence Microscope Bodies Gen 3 (eTFMB3, eTOSFM3).

    Trigger IN/OUT BNC ports and 4 digital input/output can be used to monitor the experiment, trigger or synchronize the microscope with external recording devices, or trigger other devices.

    Connection ports:
    1 Master input trigger (BNC connector)
    1 output TTL trigger (BNC connector)
    4 Programmable Digital inputs/outputs
    1 Microscope port (HDMI)
    1 LED connector (FC)
    1 external LED connector (Molex 4 pins)
    1 port for computer connection (USB3)



  • Power supply
    110-240 VAC, 50-60Hz
    Pc connection USB 3.0
    Computeur requirements Desktop Computer recommended, Intel Core-i7, 8 GB RAM, Gigabit Ethernet and Jumbo frame compatible, Graphic card with 2 GB memory and OpenGL v4.6 compatible
    LED 470 nm only
    Operation modes Microscope follower
    Mass 0.9 kg
    Dimensions
    255 mm x 97 mm x 51 mm
    ★LISER™ and LED 470nm
    Operation Modes Off
    Continuous
    External TTL
    External Analog
    DNS software (USB)
    Microscope follower
    ★LISER™ Wavelength range 500nm - 650 nm
    LED Wavelength range 460nm - 480 nm
    Optical Connector FC/PC receptacle
    TTL modulation HI > 2.8 V
    LOW < 0.9 V
    ★LISER™ Analog input voltage 240mA/V (typical)
    LED Analog input voltage 400mA/V (typical)
    LD Analog input voltage 80mA/V (typical)
    Rise/Fall time < 10 µs
    Modulation maximum frequency 50 kHz
    Software modulation types square, ramp up, ramp down, triangle
    Mass 2.6 kg
    Dimension (W x D x H) 200 mm x 150 mm x 140 mm
  • Typical ★LISER™ output power vs Optical fiber core diameter
    Typical Output Power (mW)
    Central Wavelength
    (nm)
    Bandwidth FWHM
    (nm)
    Core 100um
    (0.22 NA)
    Core 200um
    (0.53 NA)
    Core 400um
    (0.53 NA)
    Core 960um
    (0.63 NA)
    Full Spectrum ~110 8.0 85 230 390
    LISER 525 30 2.0 20 50 106
    559 34 2.5 28 70 124
    582 75 4.5 50 125 210
    593 40 2.4 28 67 110
    612 69 2.5 32 80 130
    LED 470 25 0.4 6.5 26 120
    Typical LED 470nm output power vs Optical fiber core diameter
    Typical Output Power (mW)
    Central Wavelength
    (nm)
    Bandwidth FWHM
    (nm)
    Core 200um
    (0.53 NA)
    Core 400um
    (0.53 NA)
    Core 960um
    (0.63 NA)
    LED 470 25 8.5
    30
    140
