Breakout Board

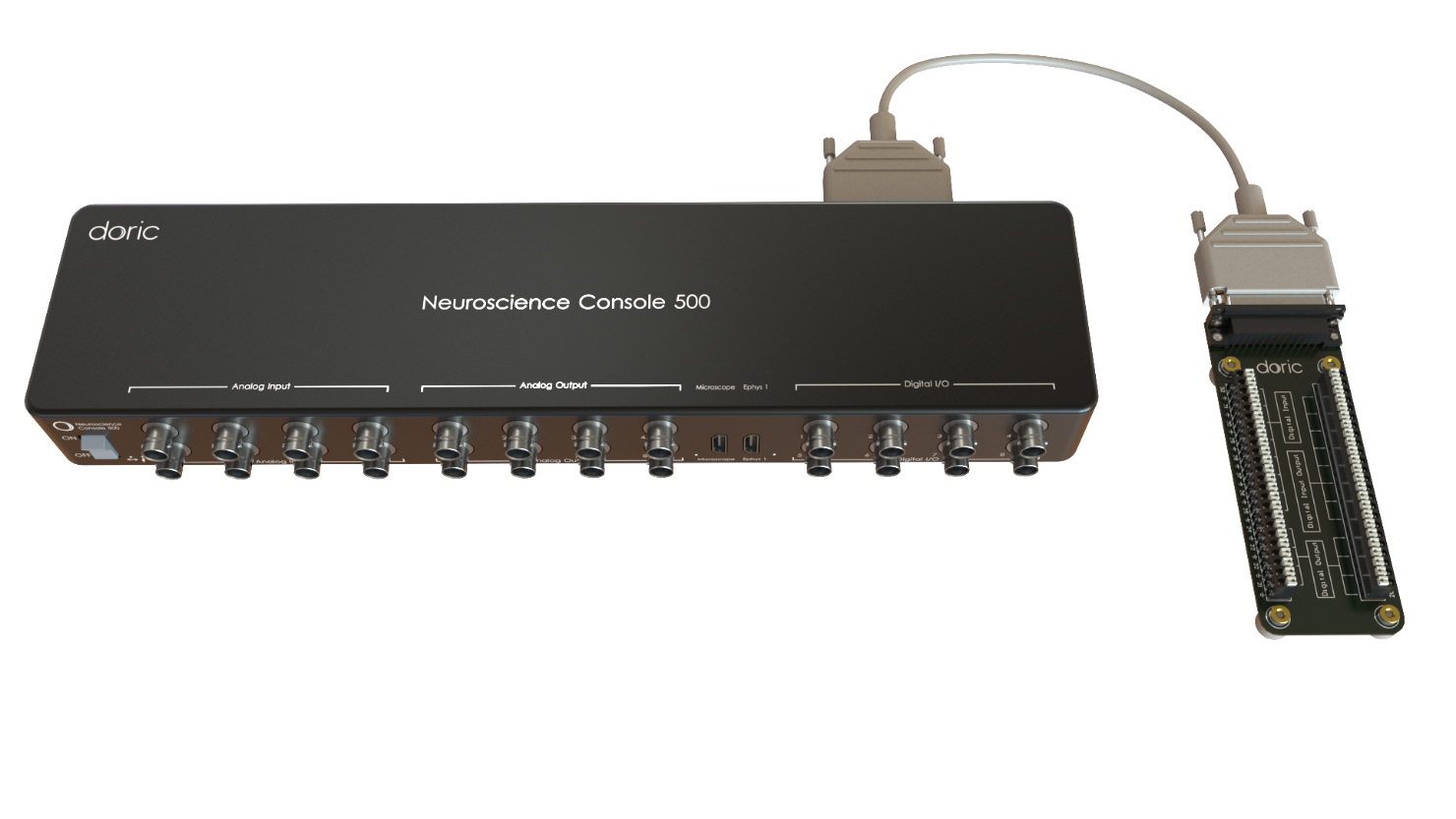

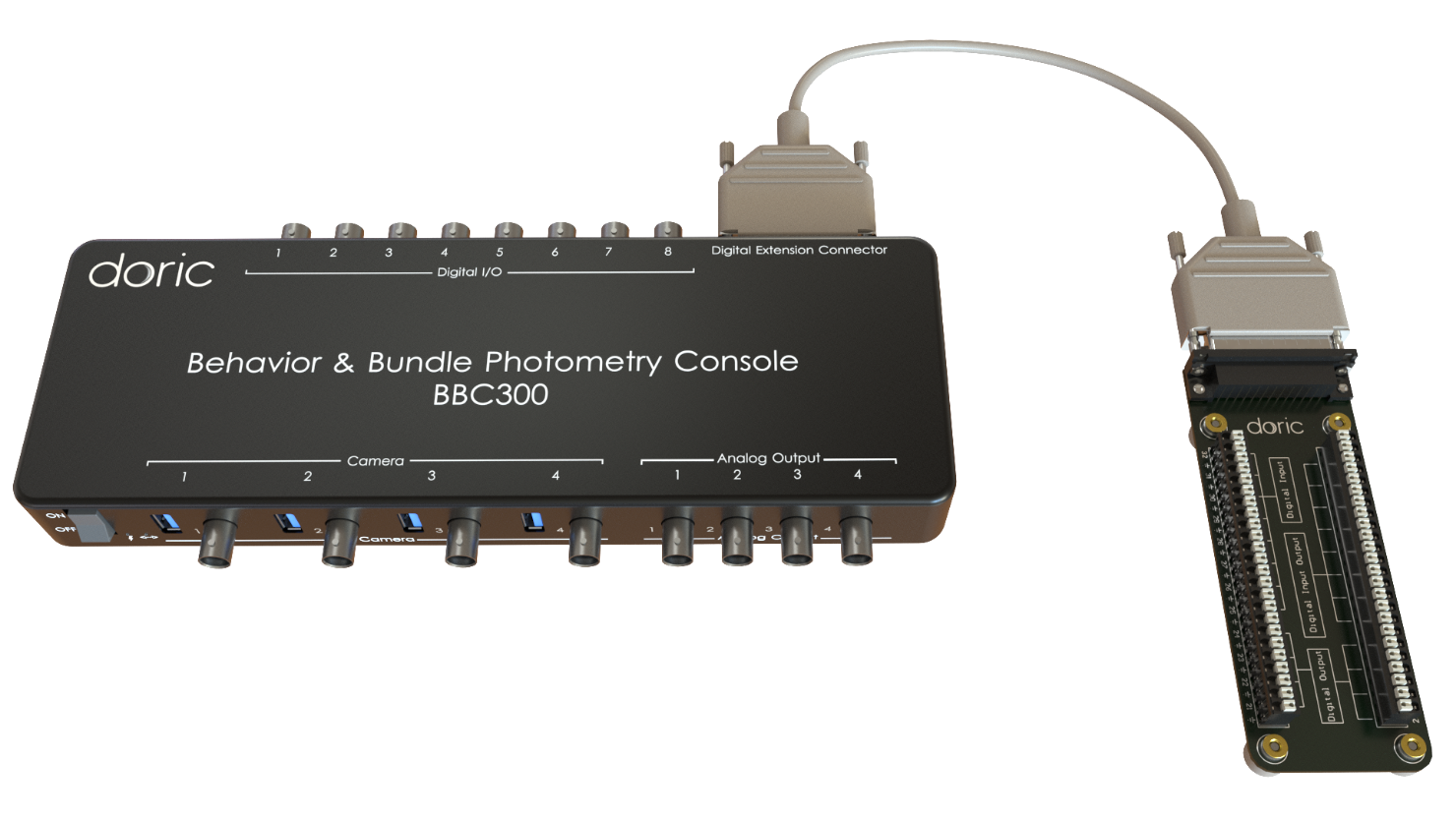

- The Breakout Board expands the number of digital ports for both the BBC300 or NC500 consoles, more than doubling their capacity. With this 24-channel expansion, synchronize and record signals from multiples animals simultaneously. These channels can be programmed like regular DIO channels in the Doric Neuroscience Studio software and are compatible with CamLoop for close-loop optogenetic simulations.

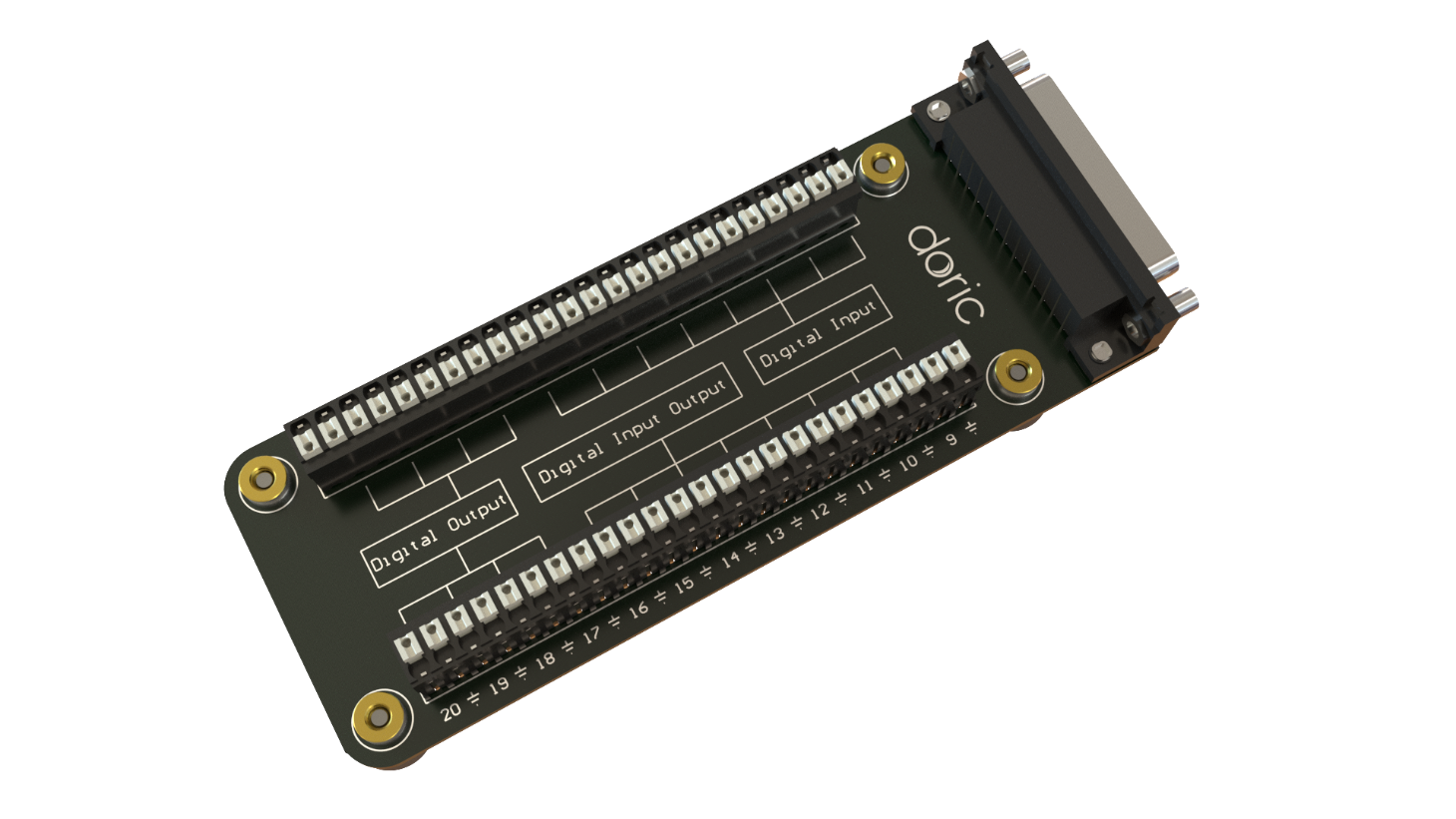

The Breakout Board features:- 8 digital inputs/outputs
- 8 digital inputs
- 8 digital outputs
-
Drawing Breakout Board
