Twist-on Imaging Cannula with Fluid Injection
Twist-on Imaging Cannula with Fluid Injection

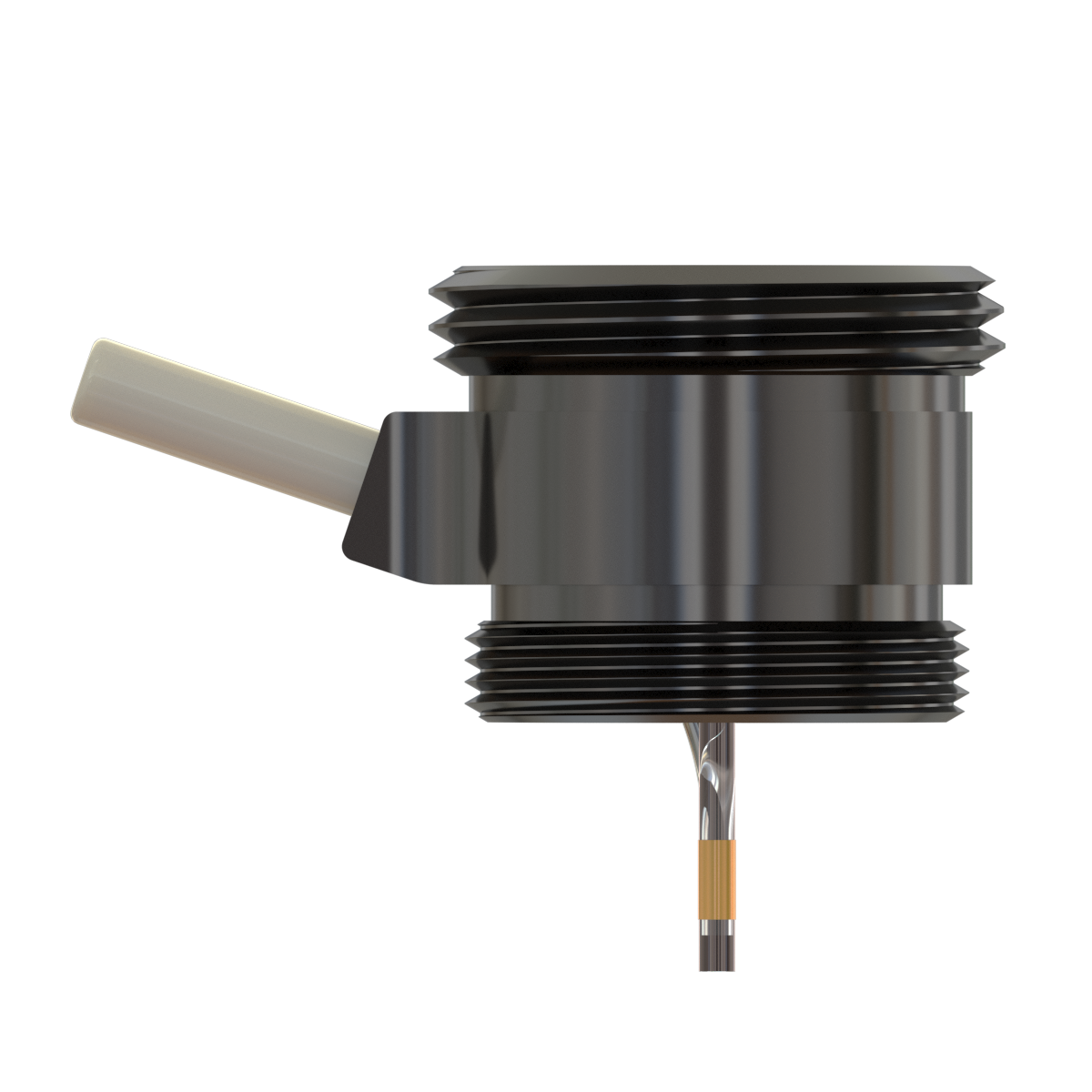

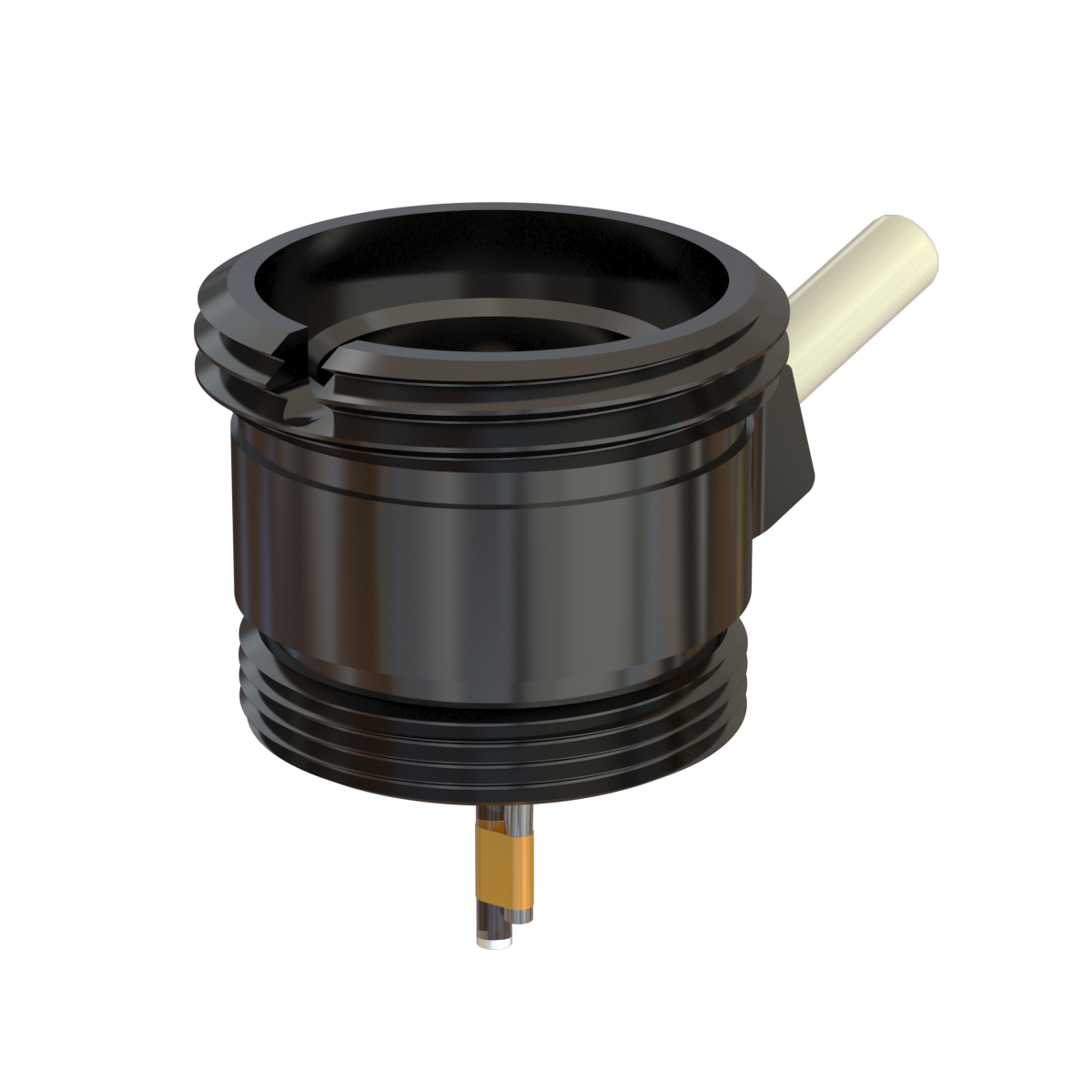

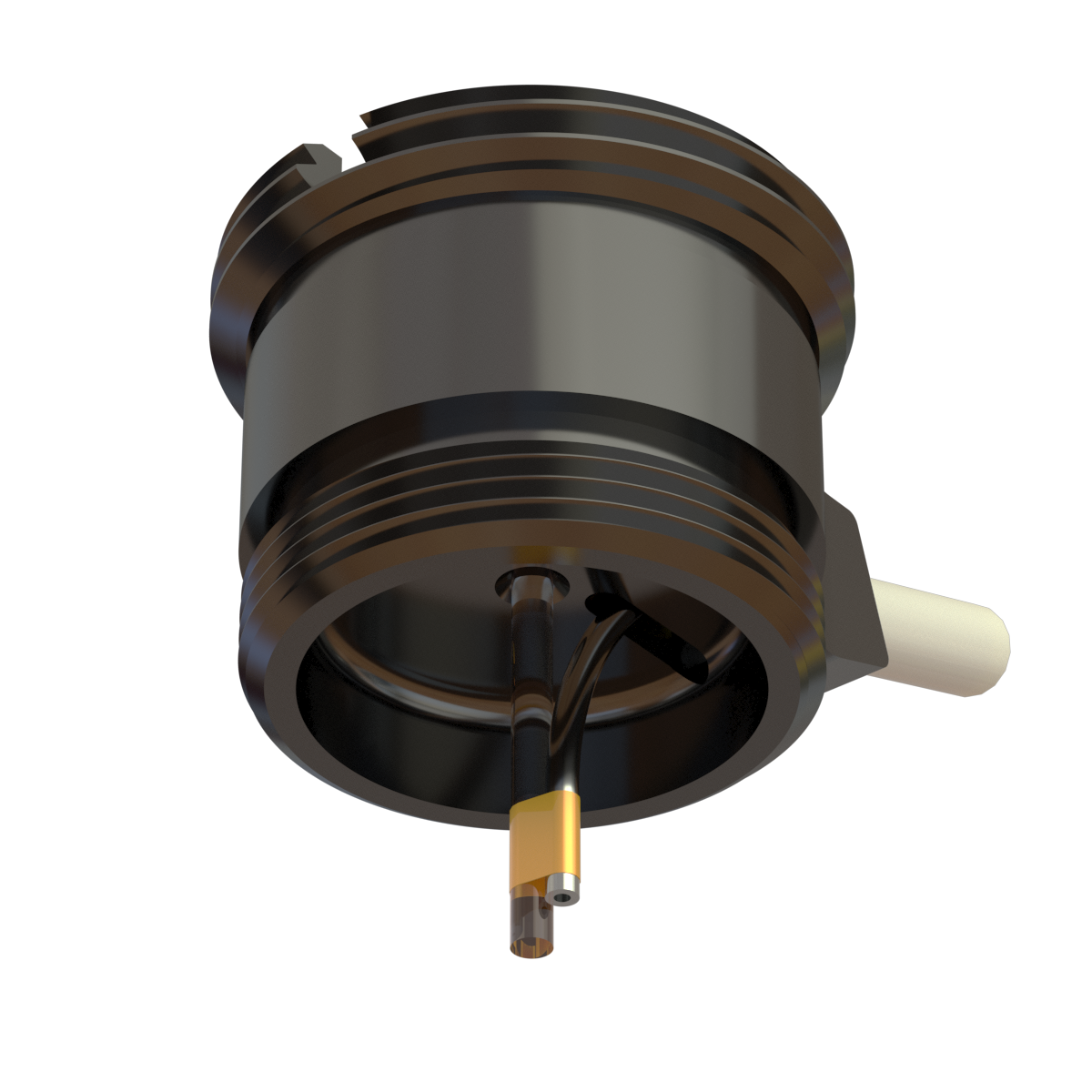

The Twist-on Imaging Cannula with Fluid Injection has two parallel implants, a GRIN lens for deep-brain imaging, and a fluid channel for liquid injection near the imaging site. The fluid injector is removable to allow for multiple injections.
The Twist-on Imaging Cannula with Fluid Injection is compatible with the following microscope:
• efocus Fluorescence Microscope Body Gen 3 (eTFMB, eTOSFM)
…generating
The Twist-on Imaging Cannula with Fluid Injection has two parallel implants, a GRIN lens for deep-brain imaging, and a fluid channel for liquid injection near the imaging site. The fluid injector is removable to allow for multiple injections.
The Twist-on Imaging Cannula with Fluid Injection is compatible with the following microscope:
• efocus Fluorescence Microscope Body Gen 3 (eTFMB, eTOSFM)
Note:
- The Fluid Injector for the Multiple Fluid Injections Cannulas must be ordered separately.
- A 2-meter length of polyethylene tubing is sold separately to connect a fluid delivery system to the cannula (PT_OFC_2).
| GRIN lens channel | ||
|---|---|---|
| GRIN lens numerical aperture | 0.5 | |
| Working distance | 80µm | |
| Penetration depth | - Type D: 0 - 3.4 mm - Type V: 3.2 - 5.8 mm | |
| Diameter | 500 µm | |
| Fluid injection channel | ||
| Injector ID/OD: | 100/170µm | |
| Guiding tube ID/OD: | 300/410 µm | |
| Guiding tube protrusion: | 500µm shorter than the GRIN lens | |
| Plug diameter: | 205 µm | |
| Plug protrusion: | 50µm longer than the guiding tube | |
| Fluid connector: | 1.25 mm ferrule | |
| Injector Dead Volume | Glass | 8 nL/mmfiber length* |
| Polyimide | 15.4 nL/mmfiber length* | |
