Fluid Injector for Optofluid Cannula with interchangeable injectors

Fluid Injector for Optofluid Cannula with interchangeable injectors

Fluid Injectors are designed to use with Optofluid Cannula with interchangeable injectors (iOFC).  Injector have M3 barrel to securely connect to iOFC receptacle.  Tube length should be precisely defined according to the iOFC tube length.

Ordering Code = …generating

Fluid Injectors are designed to use with Optofluid Cannula with interchangeable injectors (iOFC).  Injector have M3 barrel to securely connect to iOFC receptacle.  Tube length should be precisely defined according to the iOFC tube length.



Fluid Connector
Stainless tube 485 µm OD
(compatible with 25ga tubing)
Fluid Tubing IDGlass100 µm inner diameter
Polyimide140 µm inner diameter
Dead VolumeM3Glass130 nL + 8 nL / mm fiber length
Polyimide245 nL +15.4 nL / mm fiber length
ZFGlass125 nL + 8 nL / mm fiber length
Polyimide240 nL +15.4 nL / mm fiber length
Drawing

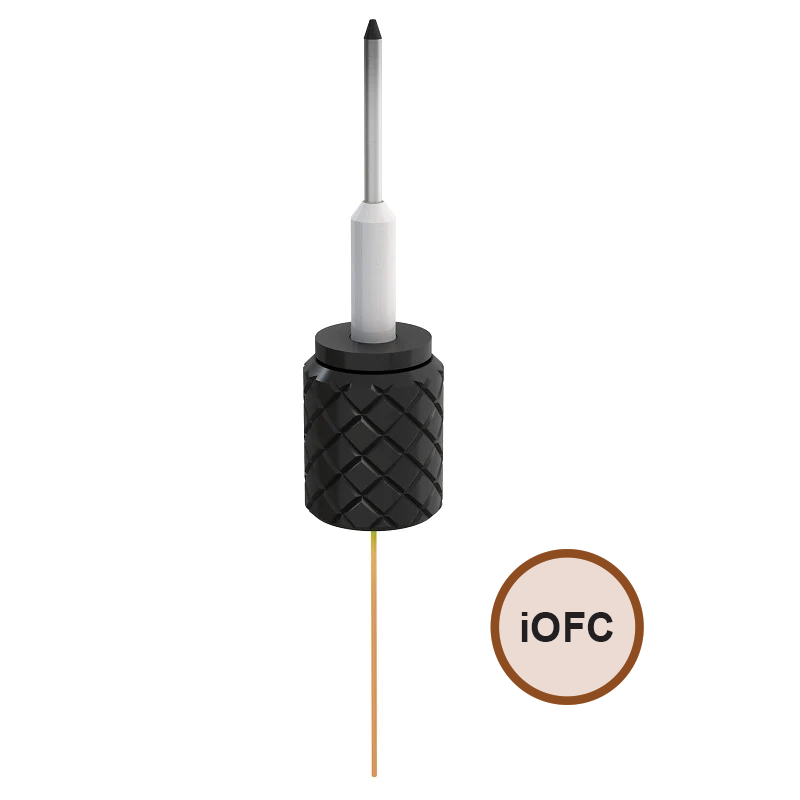

Optical injector with M3 connector

Fluid injector with ZF connector
