Connectorized LEDs

Connectorized LEDs
Connectorized LEDs
Connectorized LEDs


Ordering Code:

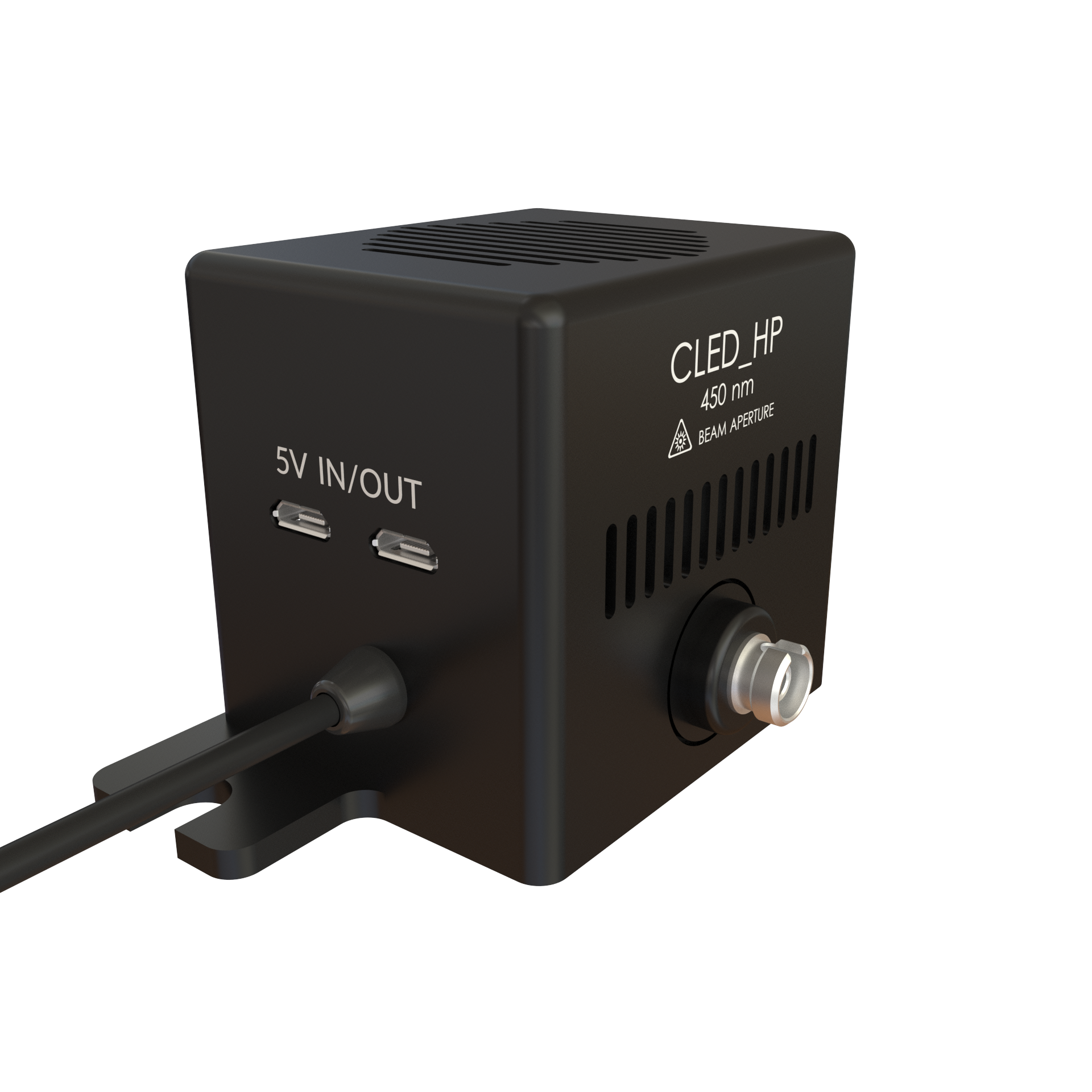

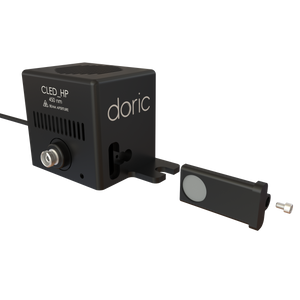

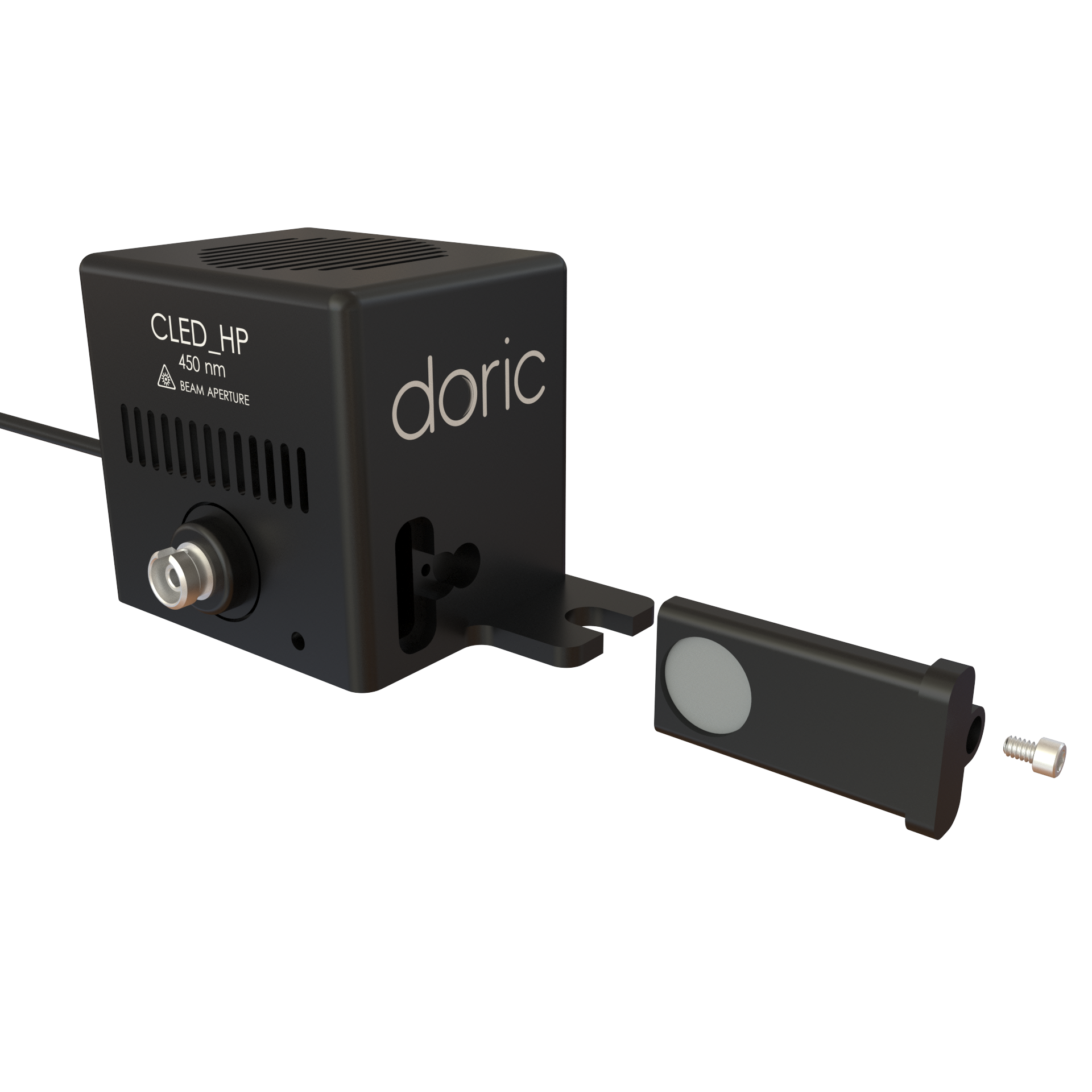

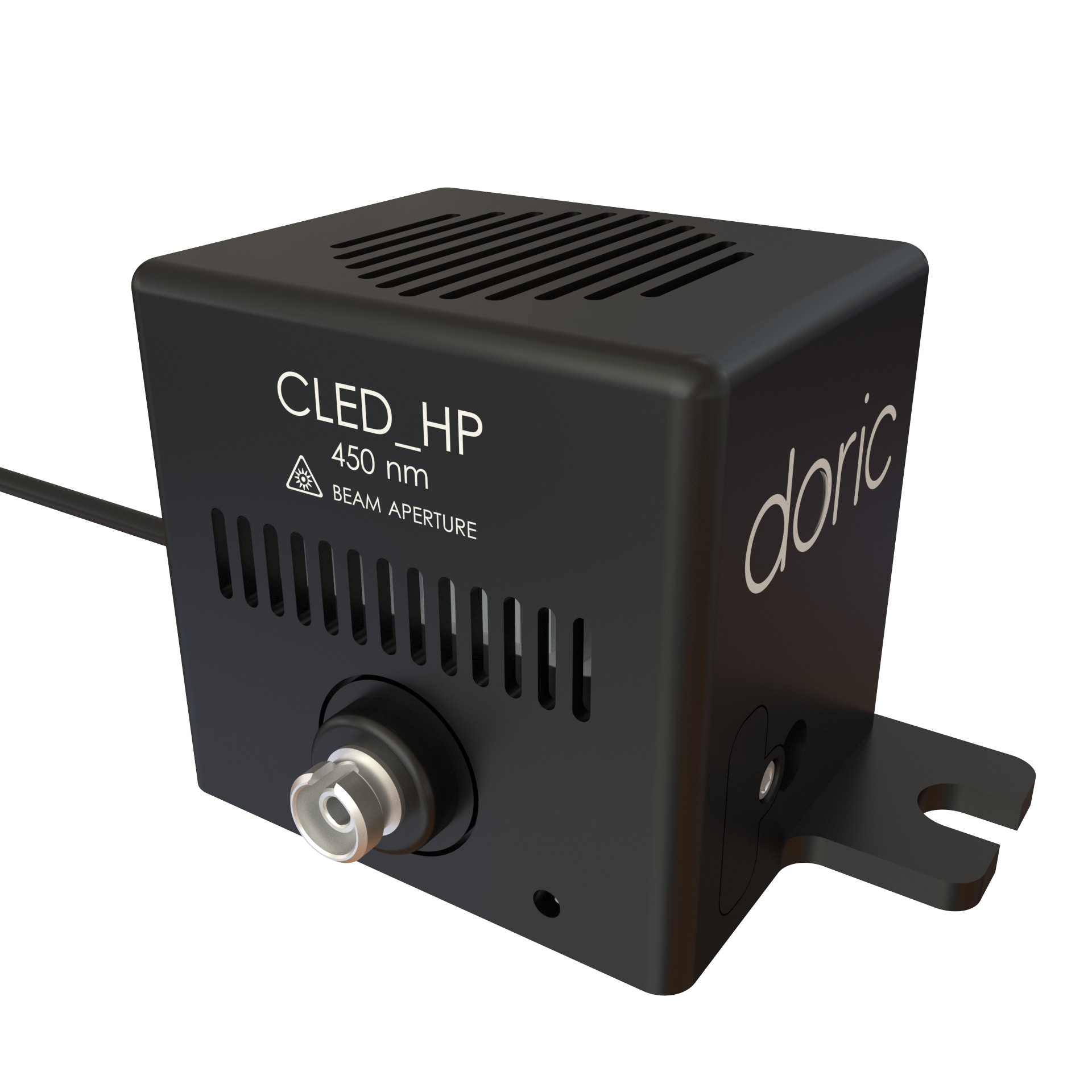

  • The new Doric Connectorized LEDs couple high brightness LEDs into an FC receptacle compatible with an FC connectorized fiber-optic patch cord. The LED cooling has been improved for optimal performance (quieter fan and more stable light output). The new housing accepts a filter insert. The inserts are available with attenuating filters to reduce the power and/or with bandpass filters to reduce the spectral bandwidth of the light source (i.e. for photometry applications).

    Each CLED includes an EPROM memory enabling its identification by Doric's LED drivers. The wavelength is recognized and the maximum current is automatically set to avoid accidental overdrive.

    The new CLEDs are available in regular (CLED-G2) and high power (CLED_HP) versions.

    Notes:
    • A micro-USB power supply for the cooling fan is included with each Connectorized LED.
    • A Connectorized LED does not include the corresponding LED Driver
  • Optical Fiber Connector FC/PC
    Optical Fiber Type
    		 Multimode
    50 to 1500 µm core diameter
    NA 0.22 to 0.66
    Optical Power
    		 see power table
    Max Input Current see power table
    Electrical connection 1 meter long pigtailed cable M8 connector 4 pos - Male
    M8 Pinout - Male
    Dimensions 86 mm x 60 mm x 51 mm without cable,
    Mass 170 grams
  • LED Typical Output Power
    @ Max Current
    [ mW ]

    		Central
    Wavelength
    [ nm ]    		 Bandwidth
    FWHM
    [ nm ]    		 Maximum
    Current (CW)
    [ mA ]    		 Maximum
    Current (Pulsed)
    [ mA ]    		 200 µm
    NA 0.57    		 400 µm
    NA 0.57    		 960 µm
    NA 0.63

    		365 ~9 500 1000 8 28 110

    		385 ~10 500 1000 11 40 150

    		405 ~12 500 1000 5 20 105

    		415 ~13 500 1000 5 20 105

    		425 ~16 500 500 6 23 130

    		435 ~16 500 700 4 15 100

    		440 (HP) ~21 1500 2000 20 70 380

    		470 ~27 1000 1000 11 34 200

    		475 (HP) ~24 1500 2000 13 48 280

    		490 ~26 350 350 1 3 16

    		495 (HP) ~32 1500 2000 10 37 148

    		500 ~30 1000 1000 7 25 125

    		515 ~40 1000 1000 3 10 56

    		525 (HP) ~35 1500 2000 5 28 150

    		560 ~100 700 700 6 24 285

    		560 (HP) ~100 1500 2000 12 48 283

    		595 ~15 1000 1000 2 8 44

    		595 (HP) ~75 1500 2000 8 30 155

    		625 ~17 1000 1000 4 17 90

    		635 ~19 1000 2000 6 23 123

    		635 (HP) ~20 1500 2000 8 31 168

    		690 ~25 600 1200 4 16 50

    		760 ~25 800 1600 4 16 49

    		860 ~30 1000 2000 6 25 41

    		940 ~44 1000 2000 7 26 38

    		5500K NA 1000 2000 12 50 250

    		5700K (HP) NA 1500 2000 16 60 320

    updated 2024-05-01 (en cours)
