Fiber-optic Cannula + Single LED
Fiber-optic Cannula + Single LED

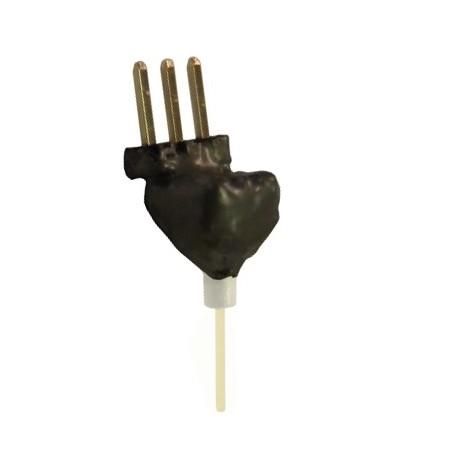

When attached to the animal's head, LED and the fiber-optic cannula assembly provides a lightweight optical source suitable for deep brain illumination. The protruding optical fiber is implanted into the skull.
The assembly is made without a heat sink to keep it small and light. Consequently, the maximum current is limited. A cable connection to a current source is included.
…generating
When attached to the animal's head, LED and the fiber-optic cannula assembly provides a lightweight optical source suitable for deep brain illumination. The protruding optical fiber is implanted into the skull.
The assembly is made without a heat sink to keep it small and light. Consequently, the maximum current is limited. A cable connection to a current source is included.
| Electrical interface | 3 pins header, 1.27 mm pitch |
| Pinout |
Pin 1 & 3 : Cathode (-) Pin 2 (center) : Anode (+) |
| Maximum Current |
150 mA (continuous) 300 mA (10 ms pulse, 10% duty cycle) |
| Dimensions | 6 mm x 6 mm x 6 mm |
| Mass | 200 mg |
| Output Power | ||
| Wavelength |
Fiber 200 µm NA 0.66 |
Fiber 400 µm NA 0.66 |
| 465 nm | 8.0 mW | 25 mW |
| 525 nm | 3.5 mW | 10 mW |
| 595 nm | 1.5 mW | 5.0 mW |
| 635 nm | 4.0 | 12 |
