Doric Mini Cube - Intensity Division
Doric Mini Cube - Intensity Division
Many fiber-coupled laser sources offer relatively high intensity within a small fiber diameter. In some cases, it is convenient to branch-out or split their light intensity between 2, 3, or 4 optical fibers.
Ordering Code =
…generating
Many fiber-coupled laser sources offer relatively high intensity within a small fiber diameter. In some cases, it is convenient to branch-out or split their light intensity between 2, 3, or 4 optical fibers.

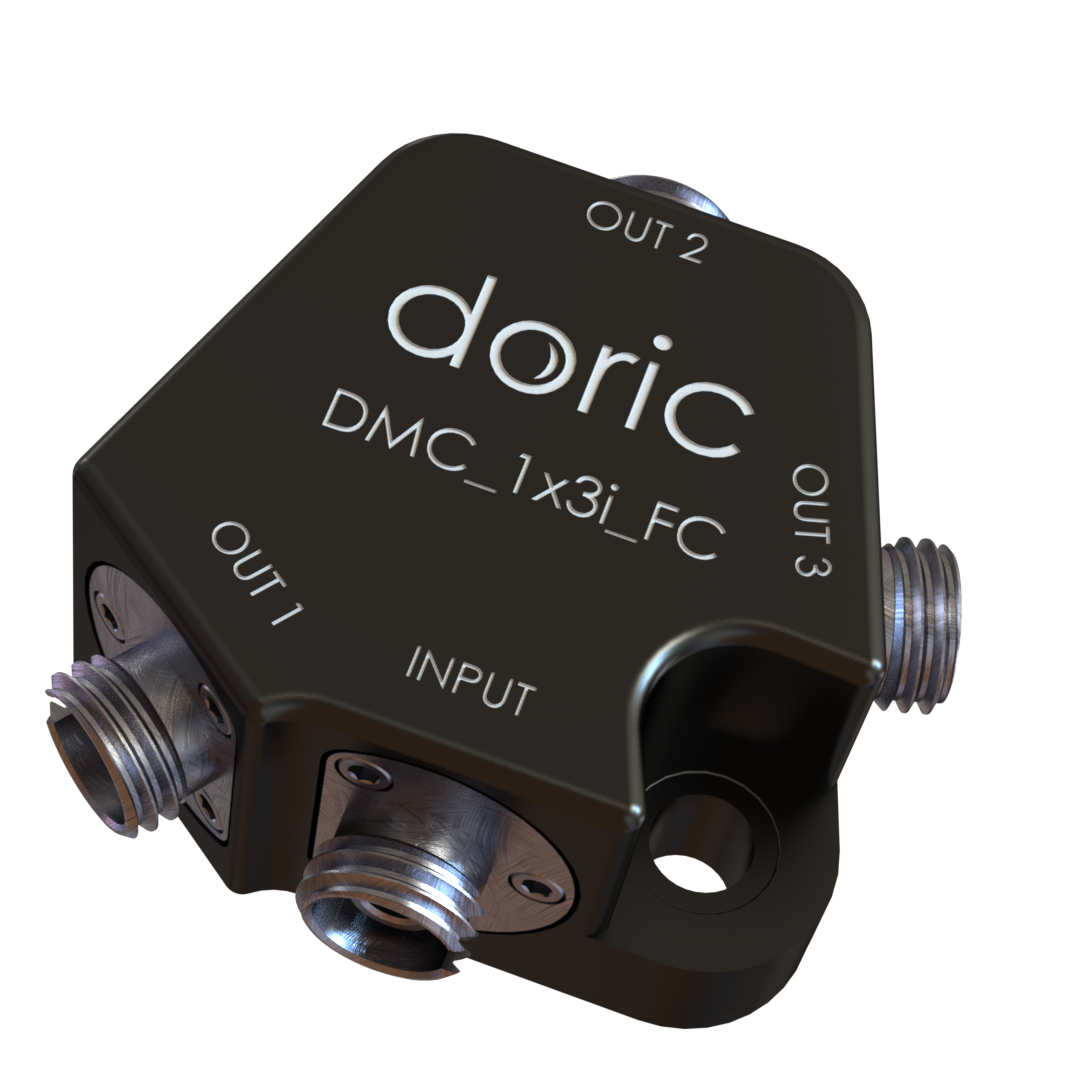

This can be easily achieved with Doric Mini Cubes - Intensity Division, namely DMC_1x2i_VIS_FC, DMC_1x3i_VIS_FC, or DMC_1x4i_VIS_FC, compact connectorized packages well-suited for use with multimode fibers.
| Design wavelength | 520 nm |
| Operating range | Visible 450 - 650 nm |
| Effective NA | 0.3 |
| Fiber Core Diameter | 50 to 600 μm |
| Optical Connector | FC/PC |
| Outputs | 2 | 3 | 4 |
| Dimension | 38 x 27 x 19 mm | 39 x 41 x 19 mm | 39 x 41 x 19 mm |
| Mass | 44 g | 66 g | 66 g |
| Efficiency * | 42 +/- 2% | 28 +/- 2% | 21 +/- 2% |
* tested at 525 nm, with 200 um - NA0.22 multimode fibre
