Stereotaxic Cannula Holders

  • Unit price per

Ordering Code:

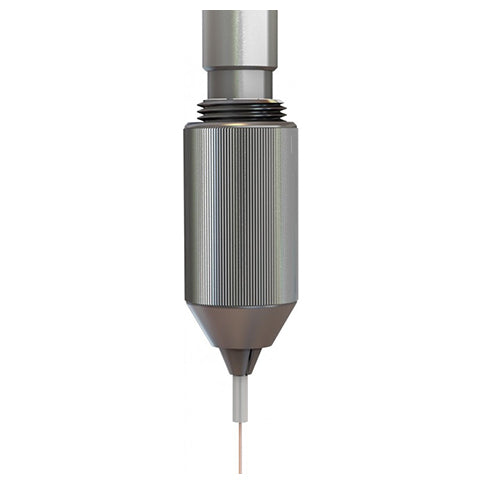

  • Stereotaxic arm is valued for its positioning precision. However, when it comes to positioning the fiber-optic cannula, some of the precision is lost when attaching or detaching the cannula to/from the arm. To simplify the implantation of the cannula and maintain the precision, we have developed a Stereotaxic Cannula Holder for attaching our cannulas to the stereotaxic arm.

    Notes :

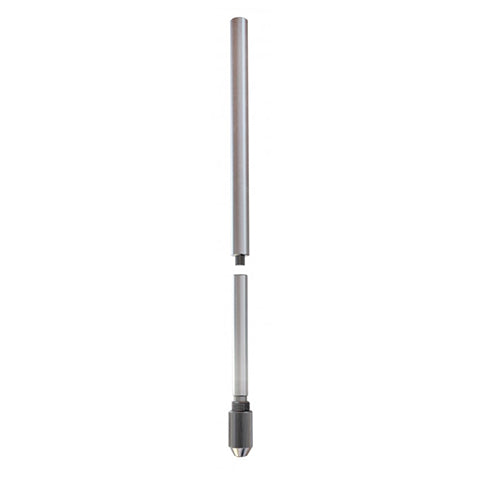

    • An optional adapter of 100 mm long can be added at one end (SIA_5 or SIA_7.9) to modify rod diameter and/or increase rod length.

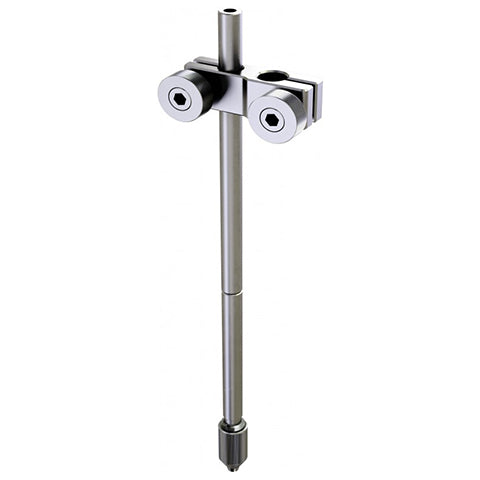

    • An optional clamp (SCL_7.9) can be used to fix the Stereotaxic Cannula Holder on stereotaxic apparatus using 7.9 mm (5/16'') diameter rods.
    • The SCH_1.25 has been designed to allow implantation of two-ferrule cannula with pitch 1.8 mm.

  • Rod Diameter 6.3 mm
    Length 79 mm
    Mass 1.25 version = 15 grams
    2.50 version = 18 grams

  • SCH_1.25-DRAWING
    SCH_2.5-DRAWING
