2-channel Imaging Cannula Model L
2-channel Imaging Cannula Model L

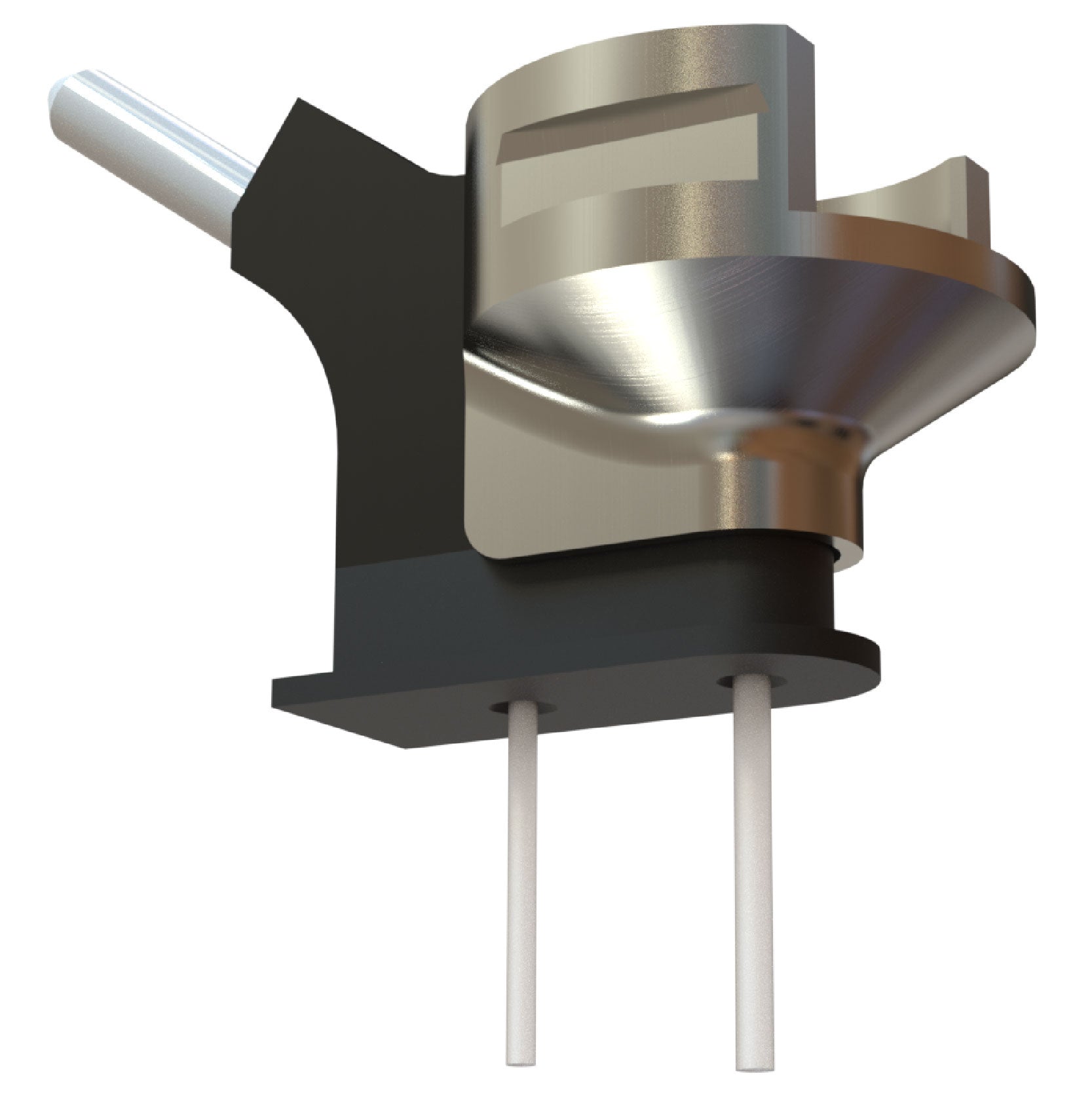

The 2-channel Imaging Cannula has two parallel implants, a GRIN lens for deep-brain imaging, and an optical fiber for optogenetic stimulation and/or photometry recording of another brain area.
Ordering Code =
…generating
The 2-channel Imaging Cannula has two parallel implants, a GRIN lens for deep-brain imaging, and an optical fiber for optogenetic stimulation and/or photometry recording of another brain area.
2-channel Imaging Cannulas Model L are compatible with:- Snap-in 1-color Fluorescence Microscope Bodies Model L (SFMB, OSFM)
- 2-color Fluorescence Microscope Bodies Model L (2CFM)
| GRIN lens channel | |
|---|---|
| Optical fiber channel | |
| Pitch | 1 mm to 5 mm |
| GRIN lens diameter | 500 µm |
| GRIN lens numerical aperture | 0.5 |
| GRIN lens length | up to 6.25 mm |
| Optical fiber diameter | 200 µm or 400 µm |
| Optical fiber numerical aperture | 0.66 |
| Optical fiber length | up to 10 mm |
| Optical connection | 1.25 mm ferrule |
